Артикул
Название
Примечание
Количество

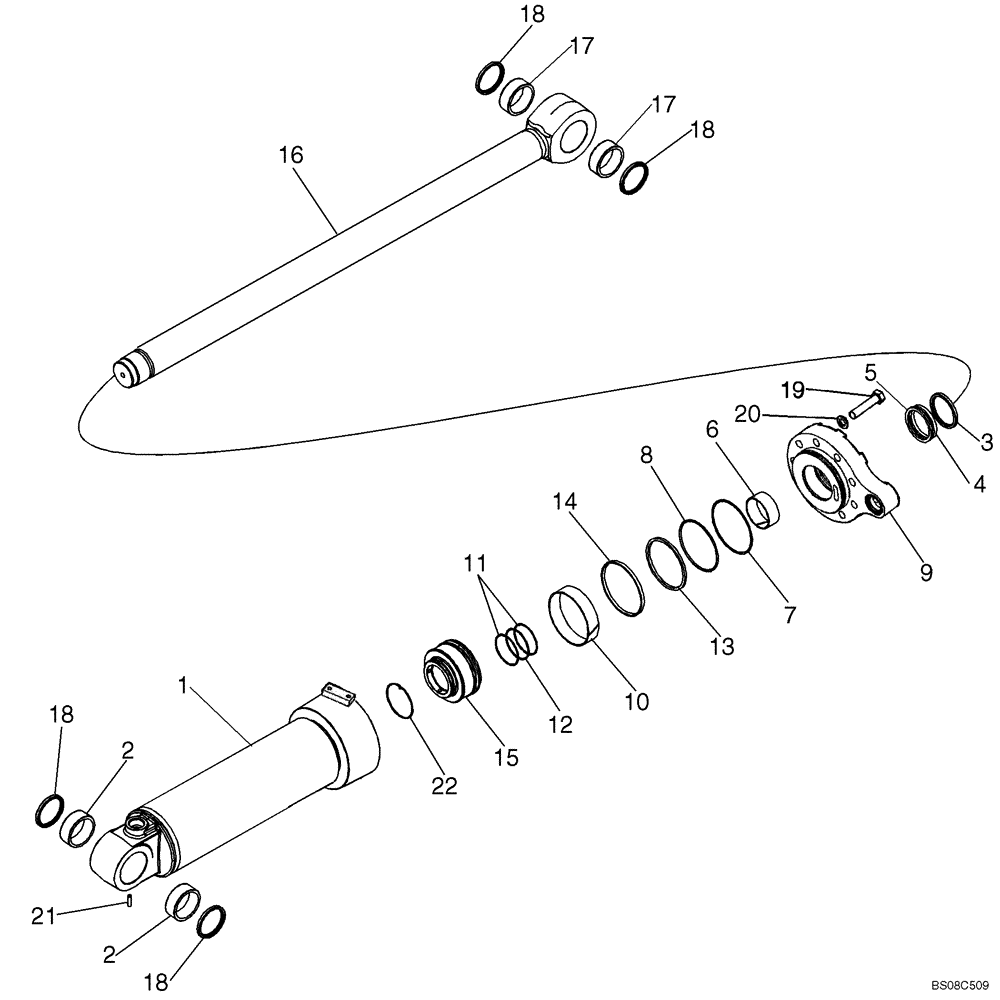

87337179
CYLINDER ASSY.
ASSY., Z-Bar Bucket, 165.11 ID x 599.6 mm strk; Incl. Refs. 1 - 22
1шт.
87337180R
REMAN-HYD CYLINDER
821E - WHEEL LOADER TIER 3 NA/EU (8/06-) Reman for new P/N 87337179
1шт.
87337180C
CORE-HYD CYLINDER
Return Number
1шт.
87529743
SEAL KIT
Z-Bar Bucket Cylinder; Incl. Refs. 3 - 8, 10 - 14, 18
1шт.
1
87309045
BARREL,165.10 mm ID x 854.10 mm L
Cylinder; Incl. Ref. 2
1шт.
2
87625612
BUSHING,82.86mm ID x 98.53mm OD x 36mm L
Replaces 446330A1
2шт.
NSS
NOT SOLD SEPARAT
GLAND ASSY., Incl. Refs. 3 - 9; Order Component Parts
1шт.
1542882C1
STRIPPER PACKAGE
Incl. Rod And Buffer Seal
1шт.
4
NSS
NOT SOLD SEPARAT
SEAL, ROD
1шт.
5
NSS
NOT SOLD SEPARAT
SEAL, BUFFER
1шт.
6
G110677
HYD CYL SLEEVE
1шт.
7
G110421
BACK-UP RING,151.81mm ID x 160.95mm OD x 1.9mm Thk
1шт.
8
238-5360
O-RING,0.21" Thk x 5.85" ID, -360, Cl 5, 75 Duro
1шт.
9
87309056
GLAND
1шт.
NSS
NOT SOLD SEPARAT
PISTON, ASSY., Incl. Refs. 10 - 15; Order Component Parts
1шт.
10
S109539
WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk
1шт.
11
G32126
BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk
2шт.
12
238-5238
O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro
1шт.
13
87399718
SEALING RING,Square, 6.86mm Thk x 145.16mm ID
Ring
1шт.
14
87399594
SEAL,159.39mm ID x 166.85mm OD x 9.32mm Thk
Piston
1шт.
15
87309996
PISTON
1шт.
16
87309053
PISTON ROD
Incl. Ref. 17
1шт.
17
87625612
BUSHING,82.86mm ID x 98.53mm OD x 36mm L
Replaces 446330A1
2шт.
18
365523A1
WIPER SEAL
4шт.
19
827-20090
BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9
9шт.
20
G32317
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
9шт.
21
G106602
LOCK PIN
Locking
1шт.
22
1980390C1
RING, SNAP
RING SNAP
1шт.
Выбрано товаров: 29
