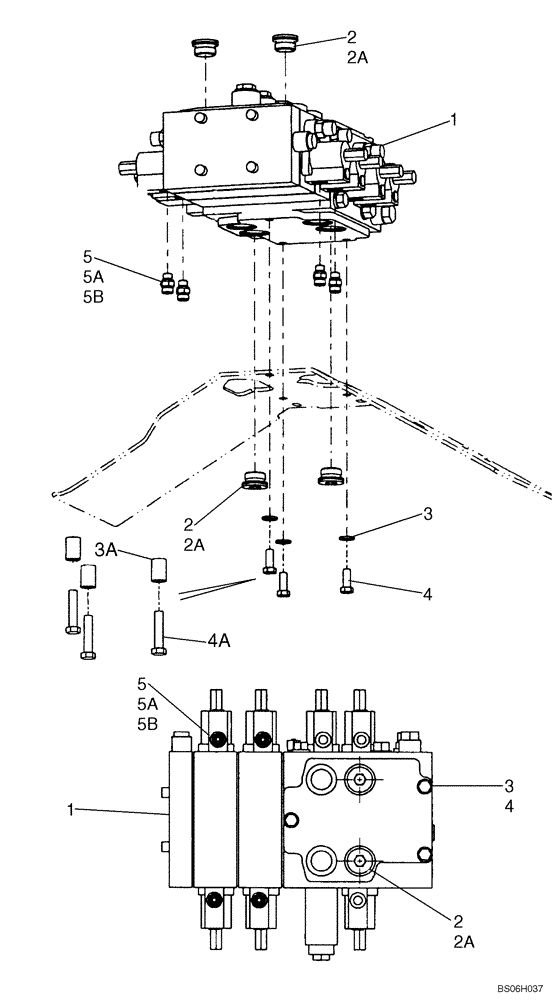

Запчасти Case 821E (08-23) - VALVE, CONTROL - MOUNTING, FOUR SPOOL (Z-BAR LOADER) (08) - HYDRAULICS

REF

INSTRUCTION

FOUR SPOOL VALVE MOUNTING

1шт.

1

87539283

VALVE

Four Spool; Z-Bar Loader Valve; See Figures 08-31, 08-32

1шт.

2

86583482

HEX SOCKET PLUG,M33 x 2

Incl. 2A, Replaces 221527A1, If Used

4шт.

2a

86639046

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal, Replaces 637-64296

1шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

If Used

3шт.

3a

A27328

SPACER

If Used

3шт.

4

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

If Used

3шт.

4a

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

If Used

3шт.

5

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 5A, 5B

4шт.

5a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

5b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.
