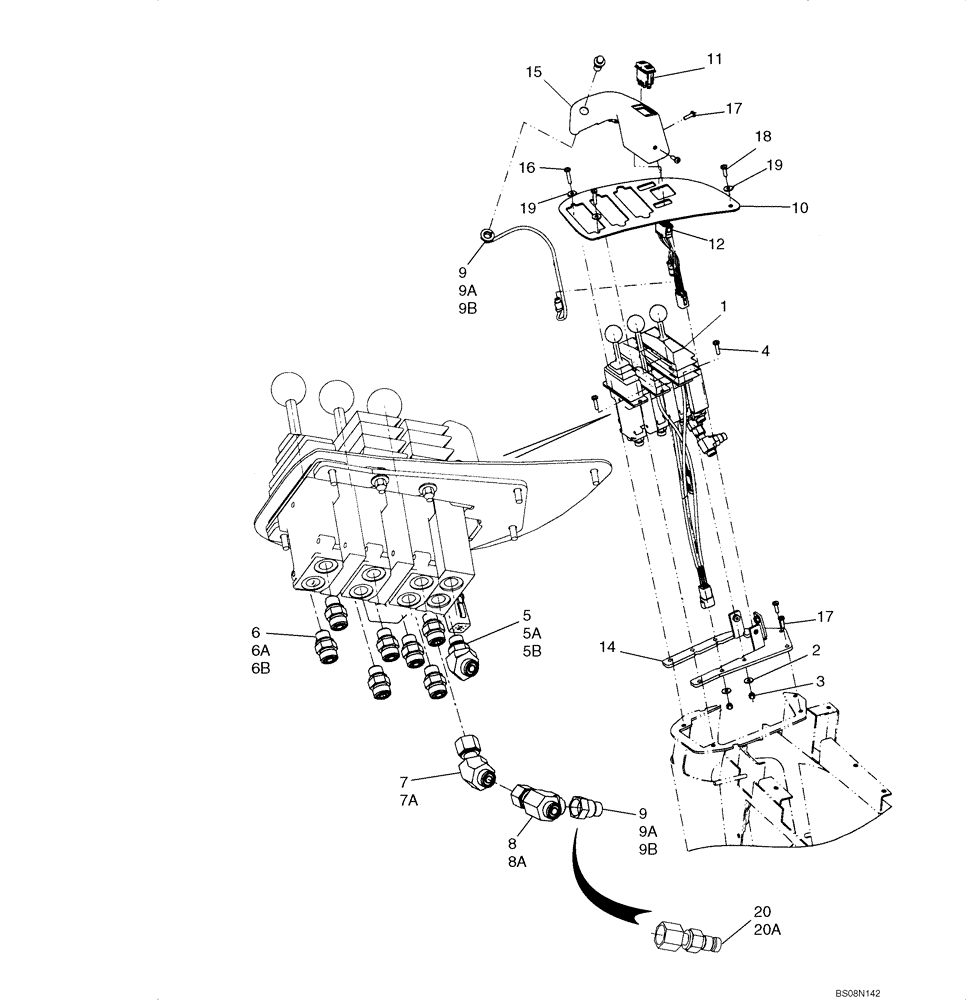

Запчасти Case 821E (08-21) - LOADER CONTROL - THREE LEVER MOUNTING (08) - HYDRAULICS

1

407869A2

VALVE, CONTROL

Three Lever With Three Spool Valve; See Figure 08-30

1шт.

2

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

3

832-10406

NUT,M6 x 1, Cl 8

4шт.

4

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

4шт.

5

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 5A, 5B

1шт.

5a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

5b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

6

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 6A, 6B

7шт.

6a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

6b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

7

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Incl. 7A

1шт.

7a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

8

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 8A

1шт.

8a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

9

201-145

REDUCER,9/16"-18 Male x 11/16"-16 Fem, ORFS

Incl. 9A, 9B; If Used

1шт.

9a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

9b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

10

87515559

BEZEL

3 Lever; Case

1шт.

11

400833A2

SWITCH

Rocker; Forward/Neutral/Reverse

1шт.

12

87324389

WIRE HARNESS

Forward/Neutral/Reverse Switch

1шт.

13

402390A1

SWITCH

Push Button; Downshift; Incl. 13A, 13B

1шт.

13a

NSS

NOT SOLD SEPARAT

Washer, Lock; Not Illustrated

1шт.

13b

NSS

NOT SOLD SEPARAT

Nut; Not Illustrated

1шт.

14

87534053

BRACKET

Single Axis Controller

1шт.

15

87523729

COVER

Tower

1шт.

16

540-711

SCREW,Cross Pan Hd, M6 x 30

2шт.

17

540-719

SCREW,Cross Pan Hd, M6 x 20

6шт.

18

87582901

SELF-TAP SCREW,Pan, #10 - 16 x 3/4"

1шт.

19

86639315

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

20

190119A1

COUPLING

Diagnostic; Incl. Ref. 20A

1шт.

20a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.
