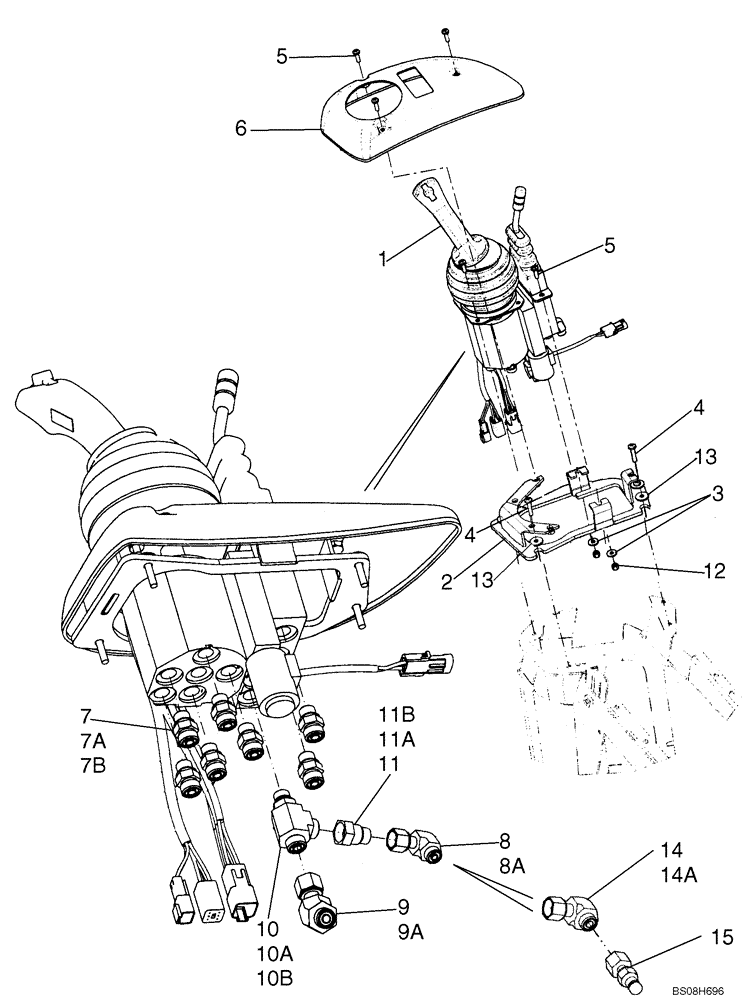

Запчасти Case 821E (08-19) - LOADER CONTROL - JOYSTICK WITH SINGLE LEVER MOUNTING (08) - HYDRAULICS

1

87340017

JOYSTICK

Control With 1 Lever; See Figures 08-35, 08-35A, 08-36

1шт.

2

87516506

ADAPTER

1шт.

3

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

4

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

4шт.

5

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

7шт.

6

87638911

BEZEL

Replaces 87515561

1шт.

7

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 7A, 7B

7шт.

7a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

7b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

8

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 8A; If Used

1шт.

8a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

9

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Incl. 9A

1шт.

9a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

10

700-406

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 10A, 10B

1шт.

10a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

10b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

11

201-145

REDUCER,9/16"-18 Male x 11/16"-16 Fem, ORFS

Incl. 11A, 11B; If Used

1шт.

11a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

11b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

832-10406

NUT,M6 x 1, Cl 8

2шт.

13

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

4шт.

14

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 14A; If Used

1шт.

14a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

190119A1

COUPLING

If Used

1шт.
