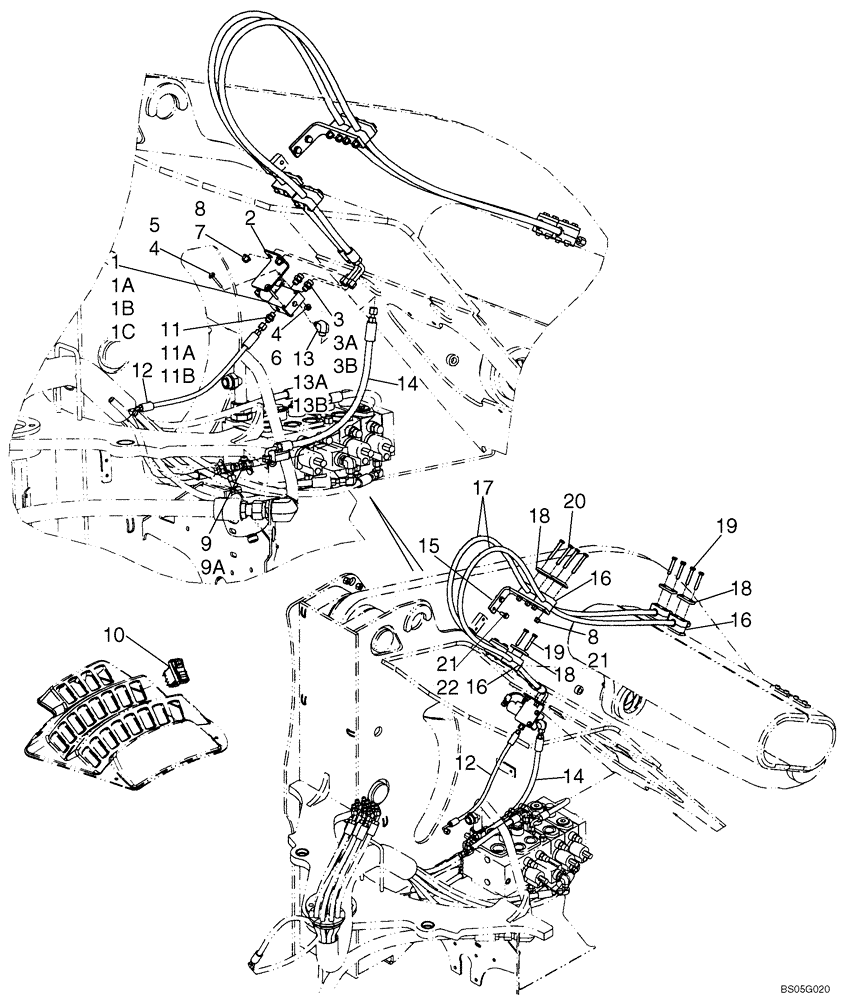

Запчасти Case 821E (08-14) - HYDRAULICS - COUPLER LOCKING (08) - HYDRAULICS

1

379139A1

SOLENOID VALVE

Coupler Locking; Incl. 1 - 1C, Serial Range: -N9F206858

1шт.

1

84139102

SOLENOID VALVE

, Start Serial: N9F206859

1шт.

1a

NSS

NOT SOLD SEPARAT

Coil

1шт.

1b

8605216

SOLENOID VALVE

Component Parts Not Serviced Separately; Order 8605153 Seal Kit; Incl. 1C

1шт.

8605153

SEAL KIT

1шт.

1c

124639A1

SEAL KIT

Includes (4) O-Rings and (6) Backup Rings, Which Are Not Serviced Separately

1шт.

2

87346053

BRACKET

Coupler

1шт.

3

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 3A, 3B

2шт.

3a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

3b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

4

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

5

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

6

832-10406

NUT,M6 x 1, Cl 8

2шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

9

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 9A

1шт.

9a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

3шт.

10

364444A2

SWITCH

Pin Engage

1шт.

11

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. 11A, 11B

1шт.

11a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

11b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

87346060

HOSE ASSY.

626mm (24-3/4 in); Coupler Return

1шт.

13

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 13A, 13B

2шт.

13a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

13b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

14

87346058

HOSE ASSY.

591mm (23-1/2 in); Coupler Pressure

1шт.

15

396918A1

BRACKET

Hose Clamp, Tan; If Used

1шт.

15

373040A2

BRACKET

Hose Clamp, Gray; If Used

1шт.

16

379374A1

BLOCK

Tube Mounting

6шт.

17

87346057

HOSE ASSY.

Z-Bar Coupler, 2381 mm (94 in); Used On Z-Bar Models Only

2шт.

17

87563053

HOSE ASSY.

XR Coupler, 2917 mm ( 114 - 29/32 in); Used On XR Models Only

2шт.

18

367658A1

PLATE

Clamp Cover

6шт.

19

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

8шт.

20

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

22

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

23

701-911

PLUG,Hex, 11/16" - 16 ORFS

Incl. 23A; Not Illustrated

2шт.

23a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.
