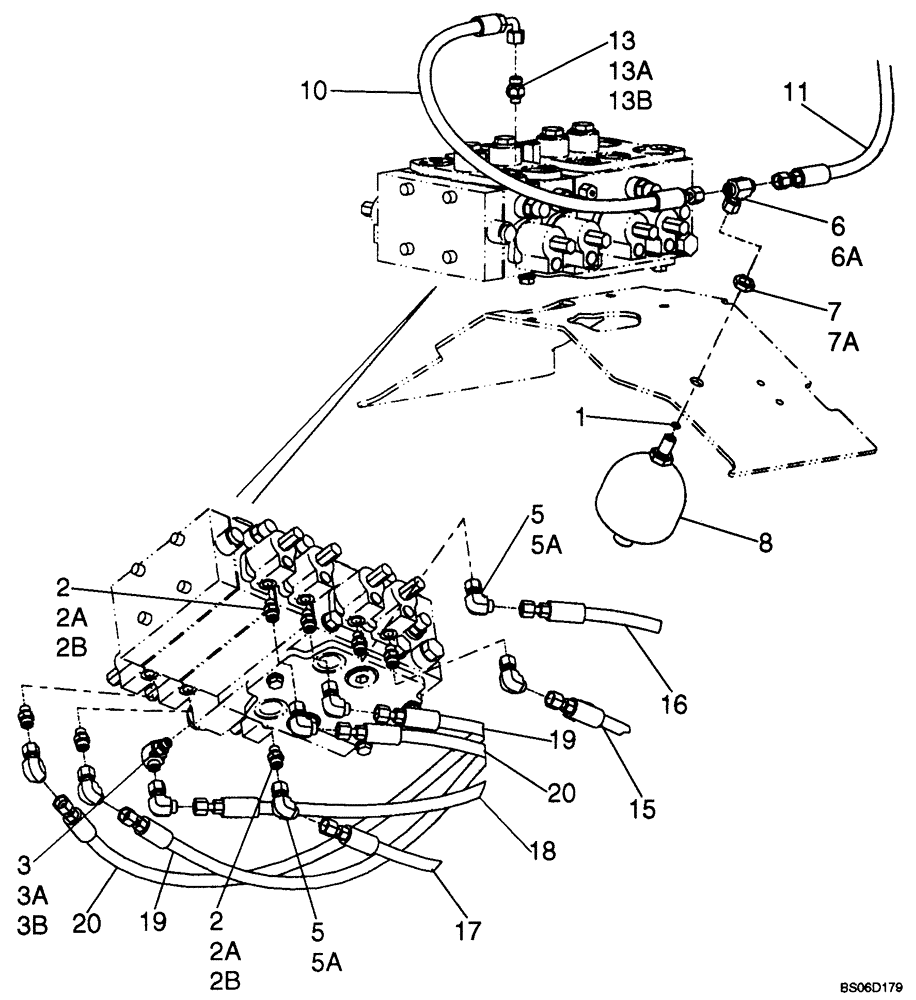

Запчасти Case 821E (08-13A) - HYDRAULICS - LOADER CONTROLS - PILOT CONTROL LINES (08) - HYDRAULICS

REF

INSTRUCTION

PILOT CONTROL HOSES

1шт.

1

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

2

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 2A, 2B

3шт.

2a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

2b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

3

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 3A, 3B

1шт.

3a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

3b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

5

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 5A

2шт.

5a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

6

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 6A

1шт.

6a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

7

701-909

NUT,11/16" - 16

Incl. 7A

1шт.

7a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

8

8501047

ACCUMULATOR

Pilot; Component Parts Not Serviced Separately

1шт.

10

87351223

HOSE ASSY.

831 mm (33 in); Pilot Accumulator

1шт.

11

87351234

HOSE ASSY.

2376mm (94 in); Pilot Pressure

1шт.

13

391859A1

VALVE, CHECK

Incl. 13A, 13B

1шт.

13a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

13b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

15

87351229

HOSE ASSY.

2438mm (96 in); Pilot Dump

1шт.

16

87351232

HOSE ASSY.

2498 mm ( 98-1/3 in ); Pilot Lower

1шт.

17

87351231

HOSE ASSY.

2425mm 95-1/2in); Pilot Rollback

1шт.

18

87351230

HOSE ASSY.

2490mm (98 in); Pilot Raise

1шт.

19

87351226

HOSE ASSY.

2573 mm (101in); Third Spool Pilot

2шт.

20

87351225

HOSE ASSY.

2645mm ( 104n ); Fourth Spool Pilot

2шт.
