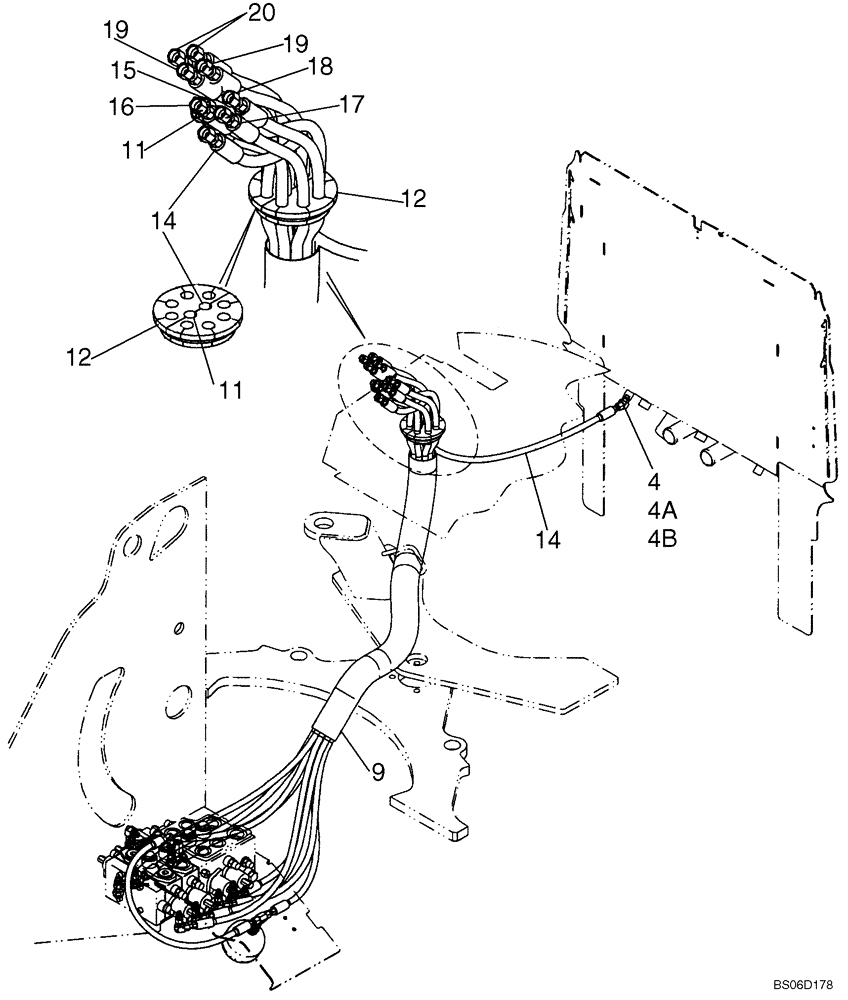

Запчасти Case 821E (08-13) - HYDRAULICS - LOADER CONTROLS - PILOT CONTROL LINES (08) - HYDRAULICS

REF

INSTRUCTION

PILOT CONTROL HOSES

1шт.

4

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl.4A, 4B

1шт.

4a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

4b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

9

87333783

HOSE PROTECTION,80.00 mm ID x 1254.00 mm

1шт.

11

87351234

HOSE ASSY.

2376mm (94 in); Pilot Pressure

1шт.

12

232388A1

GROMMET

2шт.

14

87351224

HOSE ASSY.

1230mm (48-1/2in); Hydraulic Tank

1шт.

15

87351229

HOSE ASSY.

2438mm (96 in); Pilot Dump

1шт.

16

87351232

HOSE ASSY.

2498 mm ( 98-1/3 in ); Pilot Lower

1шт.

17

87351231

HOSE ASSY.

2425mm 95-1/2in); Pilot Rollback

1шт.

18

87351230

HOSE ASSY.

2490mm (98 in); Pilot Raise

1шт.

REF

INSTRUCTION

HOSES TO THREE SPOOL VALVE

1шт.

19

87351226

HOSE ASSY.

2573 mm (101in); Third Spool Pilot

2шт.

REF

INSTRUCTION

HOSES TO FOUR SPOOL VALVE

1шт.

24

87351225

HOSE ASSY.

2645mm ( 104n ); Fourth Spool Pilot

2шт.
