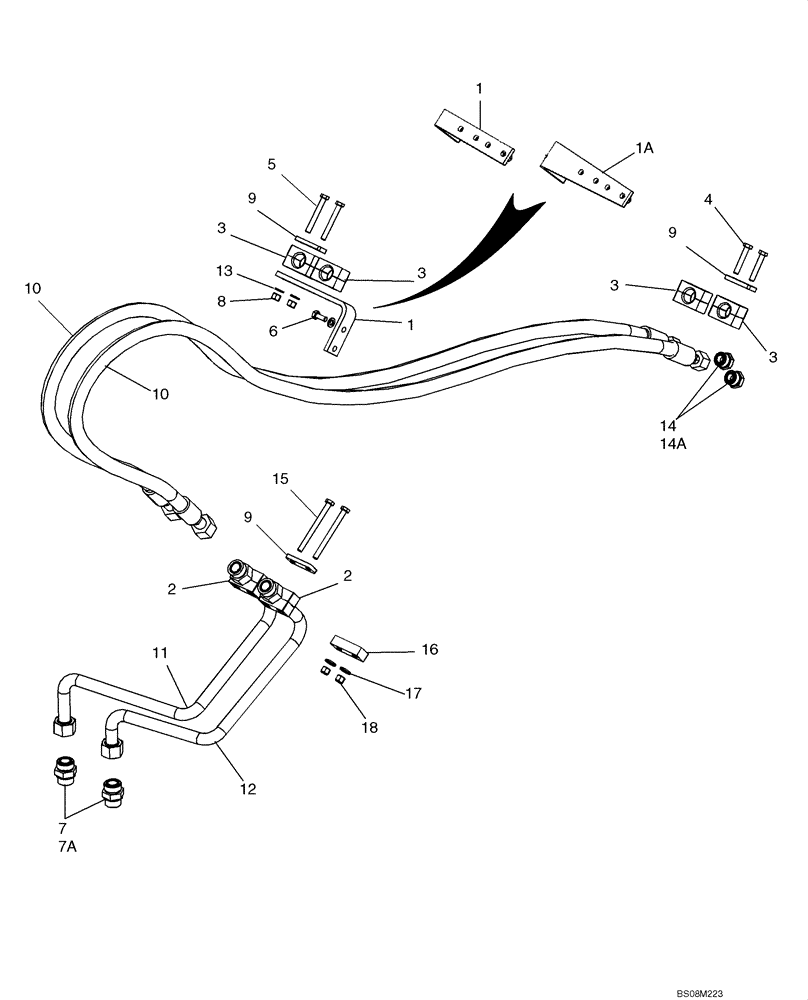

Запчасти Case 821E (08-12A) - HYDRAULICS - LOADER AUXILIARY - ( XR ) (08) - HYDRAULICS

1

373040A2

BRACKET

Hose Clamp; Straight Block Mounting End; If Used

1шт.

1a

87492035

BRACKET

Hose Clamp; Tapered Block Mounting End; If Used

1шт.

2

367489A1

BLOCK

Tube Mounting

2шт.

3

372453A1

BLOCK

Tube Mounting

4шт.

4

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.

5

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

7

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 7A

1шт.

7a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

9

367658A1

PLATE

Clamp Cover

6шт.

10

87563051

HOSE ASSY.

XR Accessory, 2755 mm (108 - 15/32 in)

1шт.

11

87346050

TUBE,1" OD

Left Hand Accessory

1шт.

12

87346048

TUBE,1" OD

Right Hand Accessory

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

14

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

Incl. 14A

2шт.

14a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

2шт.

15

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

4шт.

16

87324906

SPACER

Tube Mounting

2шт.

17

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

4шт.
