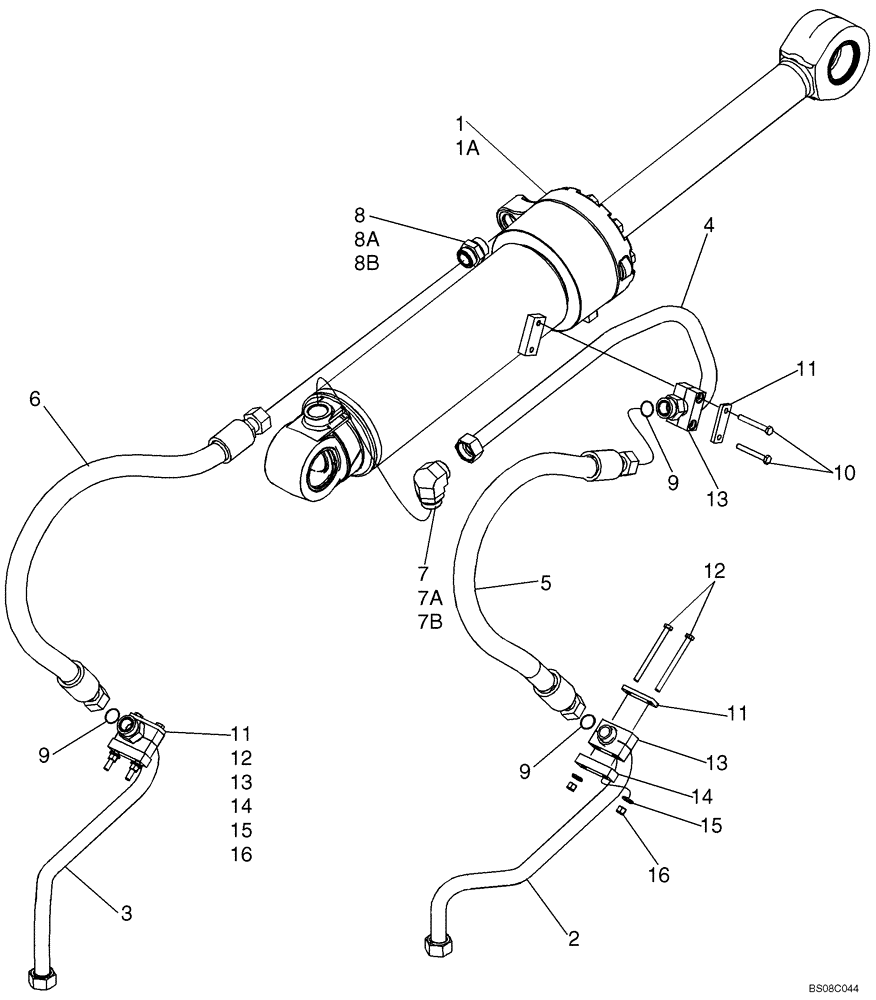

Запчасти Case 821E (08-11A) - HYDRAULICS - LOADER BUCKET ( Z-BAR/XR ) (08) - HYDRAULICS

1

87337179

CYLINDER ASSY.

Z-Bar Loader Tilt; If Used; See Figure 08-24

1шт.

87337180R

REMAN-HYD CYLINDER

821E - WHEEL LOADER TIER 3 NA/EU (8/06-) Reman for new P/N 87337179

1шт.

87337180C

CORE-HYD CYLINDER

Return Number

1шт.

1a

87696084

CYLINDER

ASSY. XR Bucket Tilt; If Used; See Figure 08-24A

1шт.

87696084R

REMAN-HYD CYLINDER

821E TIER 3 (8/06-)

1шт.

87696084C

CORE-HYD CYLINDER

Return Nmber

1шт.

2

87331337

HYD TUBE,32 mm OD

RH Rollback- For Fitting on Control Block See Item 17

1шт.

3

87331339

HYD TUBE,32 mm OD

LH Rollback- For Fitting on Control Block See Item 17

1шт.

4

87331335

HYD TUBE,1.25" OD

Tilt Cylinder Base

1шт.

5

87312877

HOSE ASSY.

Tilt Cylinder Base

1шт.

6

87312891

FLEXIBLE HOSE

Tilt Cylinder Rod

1шт.

7

700-309

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl. Refs. 7A, 7B

1шт.

7a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

1шт.

7b

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

8

84164190

HYD CONNECTOR

Incl. Refs. 8A, 8B; Replaces 700-133 Connector Used On Some Models

1шт.

8a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

1шт.

8b

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

9

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

10

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

11

8500858

PLATE

Clamp Cover

3шт.

12

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

4шт.

13

87452747

CLAMP,33.4mm ID

Mounting

3шт.

14

87384152

SPACER

Tube Mounting

2шт.

15

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

17

84164188

HYD CONNECTOR

Also Order 18-19

1шт.

18

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

19

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.
