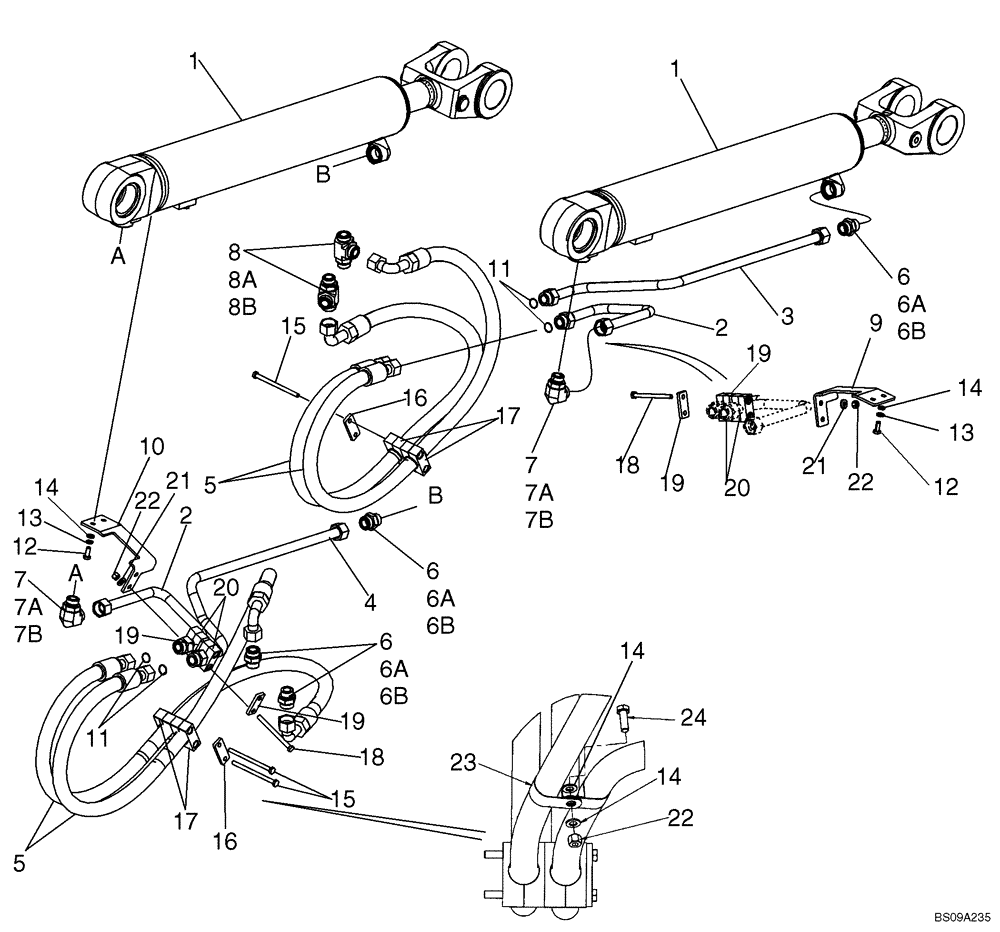

Запчасти Case 821E (08-11) - HYDRAULICS - LOADER LIFT (Z-BAR/XR) (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
87337177
CYLINDER ASSY.
Lift; See Figure 08-25
2шт.
87360952R
REMAN-HYD CYLINDER
821E, TIER 3 (8/06-)
2шт.
87360952C
CORE-HYD CYLINDER
Return Number
1шт.
2
87359350
TUBE,25 mm OD
Lift Cylinder Base; Replaces 87310935
2шт.
3
87310937
TUBE,25 mm OD
RH Lift Cylinder Rod
1шт.
4
87331333
HYD TUBE,25 mm OD
LH Lift Cylinder Rod
1шт.
5
87331345
HOSE ASSY.,25.4mm ID x 1958mm L, SAE 100R12
Lift Cylinder; 1958 mm (77 - 32/32 in)
4шт.
6
84164179
HYD CONNECTOR
Incl. Refs. 6A, 6B; Replaces 700-105 Connector Used On Some Models
4шт.
6a
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
Face Seal
1шт.
6b
637-64296
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
Boss Seal
1шт.
7
84164186
HYD CONNECTOR
ELBOW, Incl. Refs. 7A, 7B; Replaces 700-308 Elbow Used On Some Models
2шт.
7a
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
Face Seal
1шт.
7b
637-64296
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
Boss Seal
1шт.
8
84164192
HYD CONNECTOR
TEE, Incl. Refs. 8A, 8B; Replaces 701-418, 700-407 Tees Used On Some Models
2шт.
8a
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
Face Seal
2шт.
8b
637-64296
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
Boss Seal
1шт.
9
87331704
BRACKET, SUPPORTING
RH Lift Hydraulics
1шт.
10
87331708
BRACKET, SUPPORTING
LH Lift Hydraulics
1шт.
11
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
4шт.
13
892-11010
LOCK WASHER,M10
4шт.
14
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
4-6шт.
15
827-10150
BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9
4шт.
16
8500858
PLATE
Clamp
2шт.
17
87444561
BLOCK
Mounting
4шт.
18
827-10130
BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9
4шт.
19
367658A1
PLATE
Clamp
4шт.
20
367489A1
BLOCK
Mounting
4шт.
21
896-15010
WASHER,11mm ID x 24mm OD x 3mm Thk
4шт.
22
832-10410
NUT,M10 x 1.5, Cl 8
4-5шт.
23
515-25381
CLAMP,1 1/2", Insul, 1/2" Bolt
2шт.
24
627-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd
1шт.
Выбрано товаров: 32
