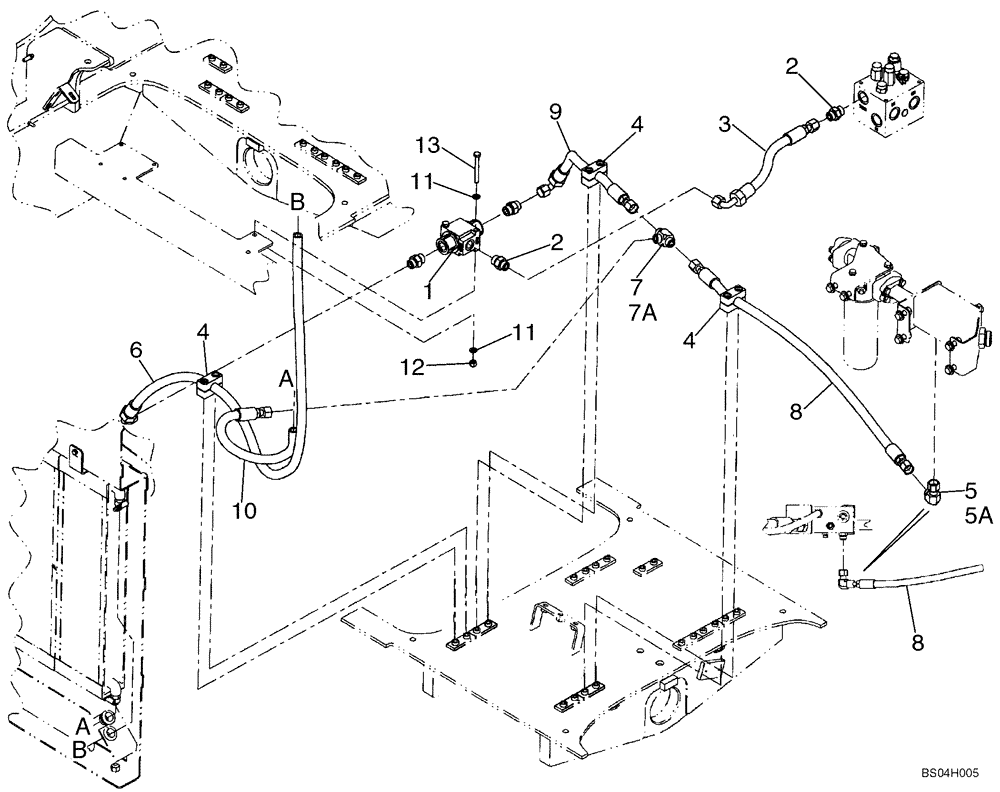

Запчасти Case 821E (08-10) - HYDRAULICS - THERMAL BYPASS (08) - HYDRAULICS

1

87326981

BY-PASS VALVE

Thermal Bypass; With M27 Thread Ports; No Service Breakdown Available

1шт.

87328377

REPAIR KIT

For 87326981 Thermal Bypass Valve; Contains; Thermal Element Assy And Seals

1шт.

2

87534063

CHECK VALVE,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl. 2A, 2B; Replaces 86597760

1-4шт.

2a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

2b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

(Replaced 238-6016)

1шт.

3

87617171

HOSE ASSY.

Fan To Bypass; 457 mm ( 18 in. ) Replaces 87453782, Used on Some Models

1шт.

4

367489A1

BLOCK

Tube Mounting

3шт.

5

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. 5A

1шт.

5a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

6

87362185

HOSE ASSY.

Bypass to Cooler; 1897mm ( 75 in )

1шт.

7

701-415

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl. 7A

1шт.

7a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

8

87453786

FLEXIBLE HOSE

Junction To Filter; 1025mm ( 40-1/3 in )

1шт.

9

87453784

FLEXIBLE HOSE

Bypass To Junction; 580mm ( 22-7/8 in )

1шт.

10

87398129

HOSE ASSY.

Cooler To Junction; 691mm ( 27 in )

1шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

13

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.
