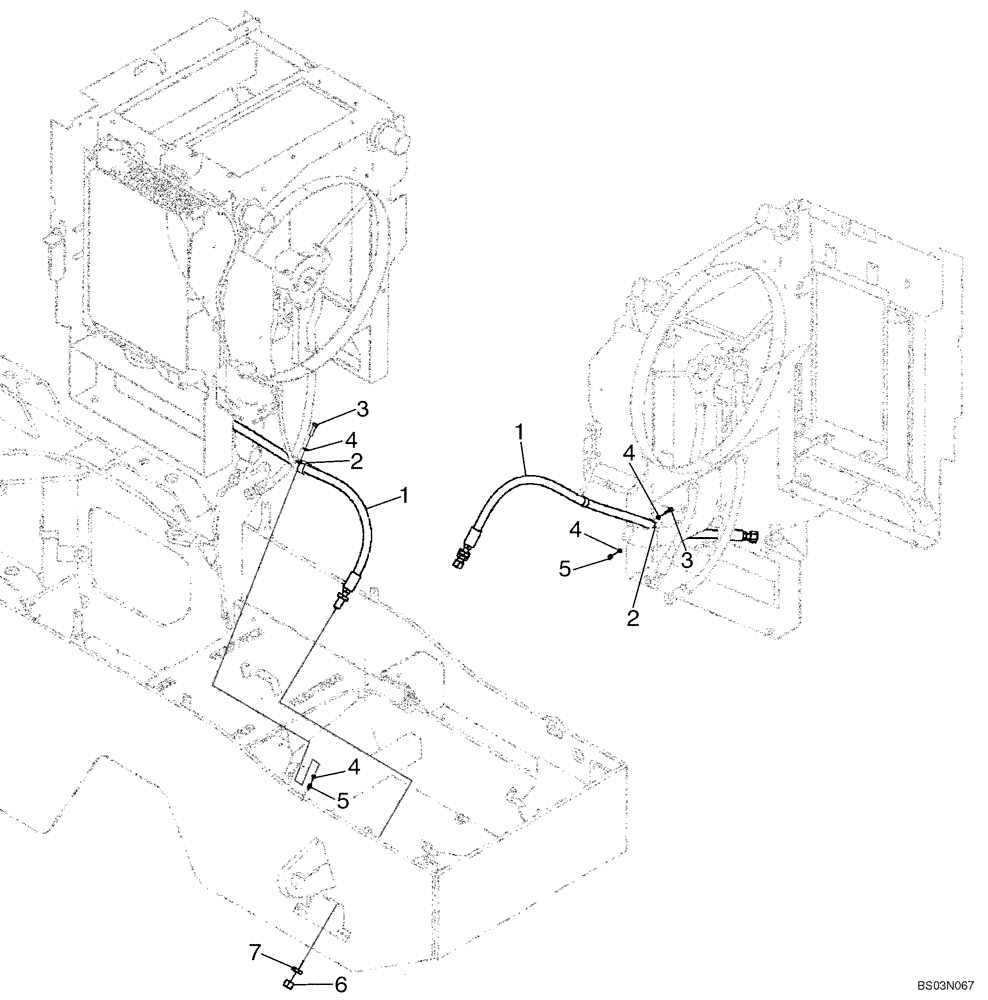

Запчасти Case 821E (08-06) - HYDRAULIC RESERVOIR - DRAIN LINE (08) - HYDRAULICS

1

87323556

HOSE ASSY.

1610mm (63-1/3 in )

1шт.

2

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

2шт.

3

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

218-335

CAP,37 Degree, 1 1/16"-12

Drain

1шт.

7

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.
