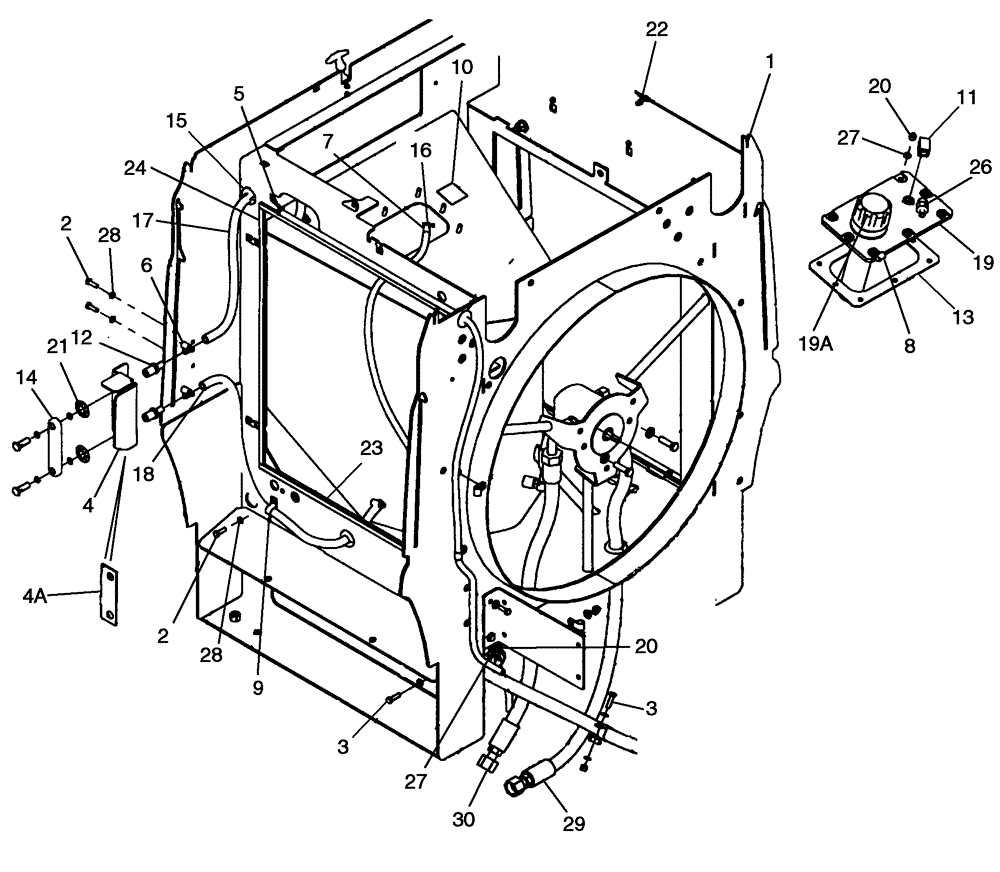

Запчасти Case 821E (08-01) - HYDRAULIC RESERVOIR - ASSEMBLY (08) - HYDRAULICS

1

87536083

FRAME

Cooling, Incl. Ref. 1A; See Figure 08-02; Replaces 87306102

1шт.

1a

379540A1

INSERT,M8

Threaded, M8; Not Illustrated

21шт.

2

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

3

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

4

87536075

BRACKET

Sight Gauge; Replaces Bracket 8602016 Used on Some Models; If Used

1шт.

4a

87493002

BRACKET

BRACKET, Sight Guage; If Used

1шт.

5

A171099

HOSE CLAMP,13.2mm - 15.4mm

1шт.

6

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

7

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

If Used

1шт.

8

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

9

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

10

395895A1

DECAL

Hydraulic Oil

1шт.

11

86521965

ELBOW,90 Degree, 3/8"-18 Female x 3/8"-18 Male

1шт.

12

L125836

FITTING

2шт.

13

379587A2

GASKET

1шт.

14

86988366

SIGHTGLASS

Sight Gauge; Includes Hardware

1шт.

15

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

2шт.

16

31-2940

FUEL HOSE

55 mm (2-3/16 in); Breather; Cut From 32-012

1шт.

17

8500164

HOSE

Sight Gauge; Upper; Cut From 32-080T1

1шт.

18

8500165

HOSE

1800 mm (70-7/8 in); Sight Gauge; Lower; Cut From 32-080T1

1шт.

19

8606005

CAP

TANK, Hydraulic; Incl. Ref. 19A; If Used

1шт.

19a

87757884

FILLER CAP

Hydraulic Tank

1шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

10шт.

21

131-141

PUSH-ON NUT,.74", Push-on

2шт.

22

833-40408

NUT,M8, U

10шт.

23

87312068

OIL SEAL

630 mm (24-13/16 in); Cut From 198573C2 Bulk

2шт.

24

8500136

SEAL

725 mm (28-9/16 in); Cut From 198573C2 Bulk

2шт.

26

8606006

VALVE, CHECK

Hydraulic Tank

1шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

11шт.

28

892-11008

LOCK WASHER,8mm ID

3шт.

29

REF

INSTRUCTION

VALVE OPTION; M1 PORT

1шт.

30

REF

INSTRUCTION

VALVE OPTION; M2 PORT

1шт.
