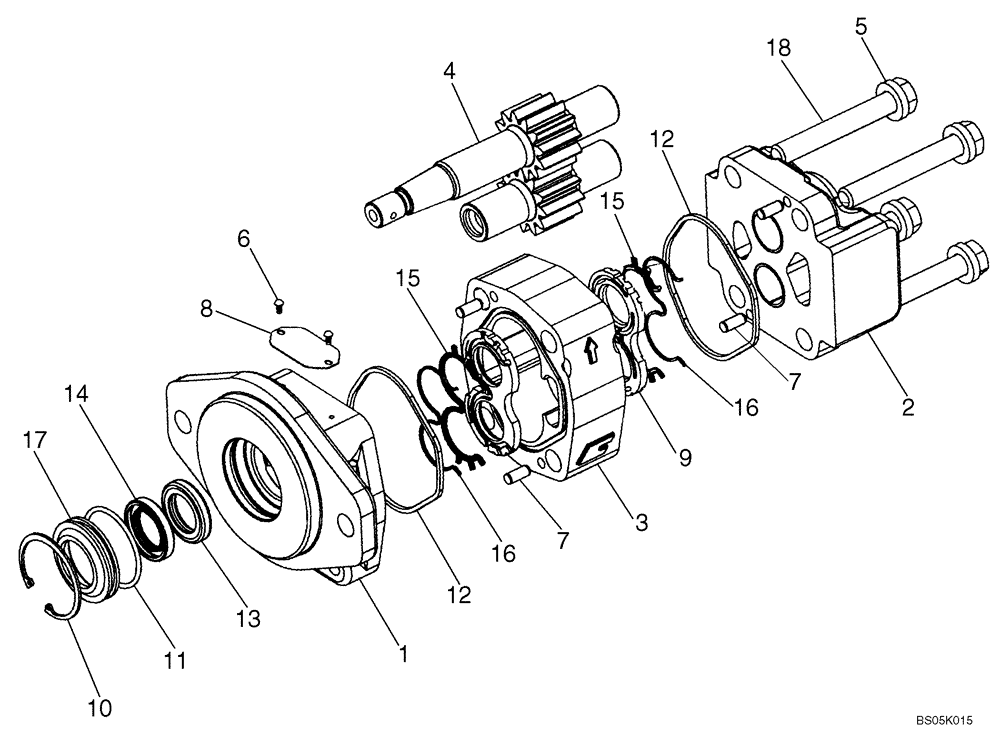

Запчасти Case 821E (07-04) - HYDRAULICS - BRAKE - PUMP ASSY (07) - BRAKES

87342166

HYDRAULIC PUMP,23.6 CC

Brake; Incl. 1 - 18

1шт.

87342166R

REMAN-HYD PUMP

821E TIER 3 NA/EU (8/06-)

1шт.

87342166C

CORE-INJECTION PUMP

Return Number

1шт.

87364063

SEAL KIT

Incl. 9 - 12, 15 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

4

NSS

NOT SOLD SEPARAT

SET GEAR SHAFT

1шт.

5

NSS

NOT SOLD SEPARAT

CAP SCREW

4шт.

6

NSS

NOT SOLD SEPARAT

SCREW, DRIVE

2шт.

7

NSS

NOT SOLD SEPARAT

DOWEL PIN

4шт.

8

NSS

NOT SOLD SEPARAT

NAME PLATE

1шт.

9

NSS

NOT SOLD SEPARAT

Thrust Plate

2шт.

10

NSS

NOT SOLD SEPARAT

RING; RETAINER

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL, O-RING

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - SSQUARE

2шт.

13

NSS

NOT SOLD SEPARAT

SEAL, LIP

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL, LIP

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL, CHANNEL

2шт.

16

NSS

NOT SOLD SEPARAT

SEAL, BACK UP

2шт.

17

NSS

NOT SOLD SEPARAT

RETAINER SEAL

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER

4шт.
