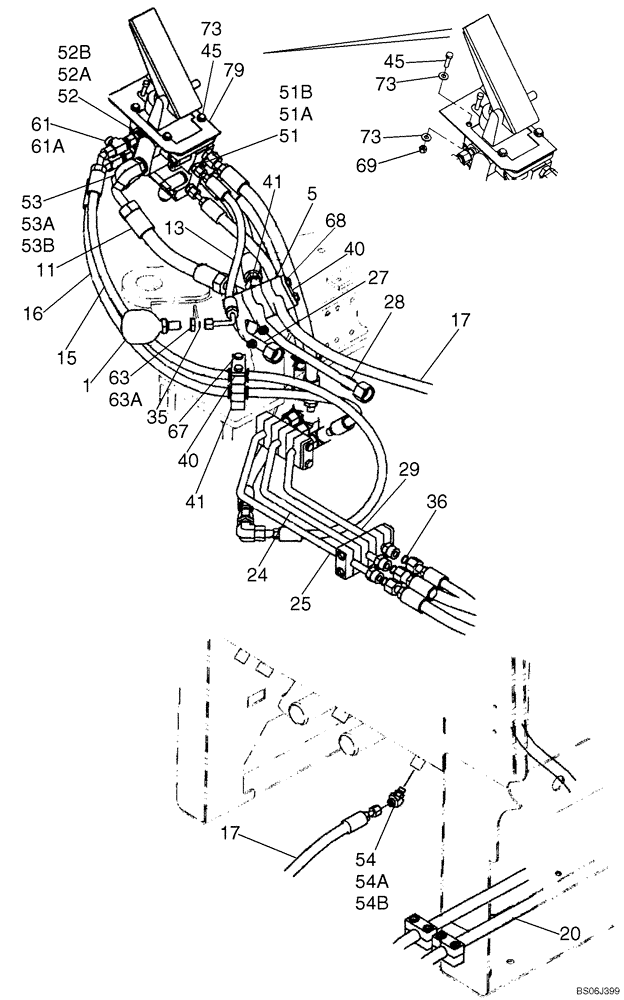

Запчасти Case 821E (07-03B) - HYDRAULICS - BRAKE, MAIN - BRAKE VALVE (07) - BRAKES

1

8500209

ACCUMULATOR

Parking Brake; Component Parts Not Serviced Separately

1шт.

5

8501052

SPECIAL CLAMP

Tube Mounting

1шт.

11

87521823

HOSE ASSY.

411mm ( 16in ); Accumulator, Front; Replaces 87325994

1шт.

13

87325996

HOSE ASSY.

461 mm (18 in); Parking Brake Accumulator

1шт.

15

87325998

HOSE ASSY.

1536mm ( 61 in ); Front Axle Brake

1шт.

16

87325999

HOSE ASSY.

1206mm (48 in); Rear Axle Brake

1шт.

17

87326000

HYDRAULIC HOSE,0.50" mm ID x 1291 mm L

1291 mm (51 in); Tank - Filter Return Tube

1шт.

20

87617158

HOSE ASSY.

1512 mm (59 - 1/2 in); Fan Supply; Replaces 87354482 Hose 1462 mm (58 in) Used on Some Models

1шт.

24

87326262

TUBE,15.88 mm OD

Brake Supply

1шт.

25

87326263

TUBE,15.88 mm OD

Fan Supply

1шт.

27

87354290

TUBE,19.05 mm OD

Front Brake Accumulator

1шт.

28

87534049

TUBE,19.05 mm OD x 424 mm L

Rear Brake Accumulator

1шт.

29

87326268

TUBE,15.88 mm OD

Rear Axle Brake

1шт.

35

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

36

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

3шт.

40

367658A1

PLATE

Clamp Cover

6шт.

41

379374A1

BLOCK

Tube Mounting

4шт.

45

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

Replaces 627-8030 M8 x 30 Bolt Used On Some Models

4шт.

51

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 51A, 51B

3шт.

51a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

51b

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

52

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 52A, 52B

3шт.

52a

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

52b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

53

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 53A, 53B

2шт.

53a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

53b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

54

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 54A, 54B

2шт.

54a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

54b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

61

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 61A

1шт.

61a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

63

701-909

NUT,11/16" - 16

Incl. 63A

1шт.

63a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

67

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.

68

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

4шт.

69

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

73

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

79

87607227

PLATE

Brake Valve; Replaces Brake Valve Plate 87534048 Used on Some Models

1шт.
