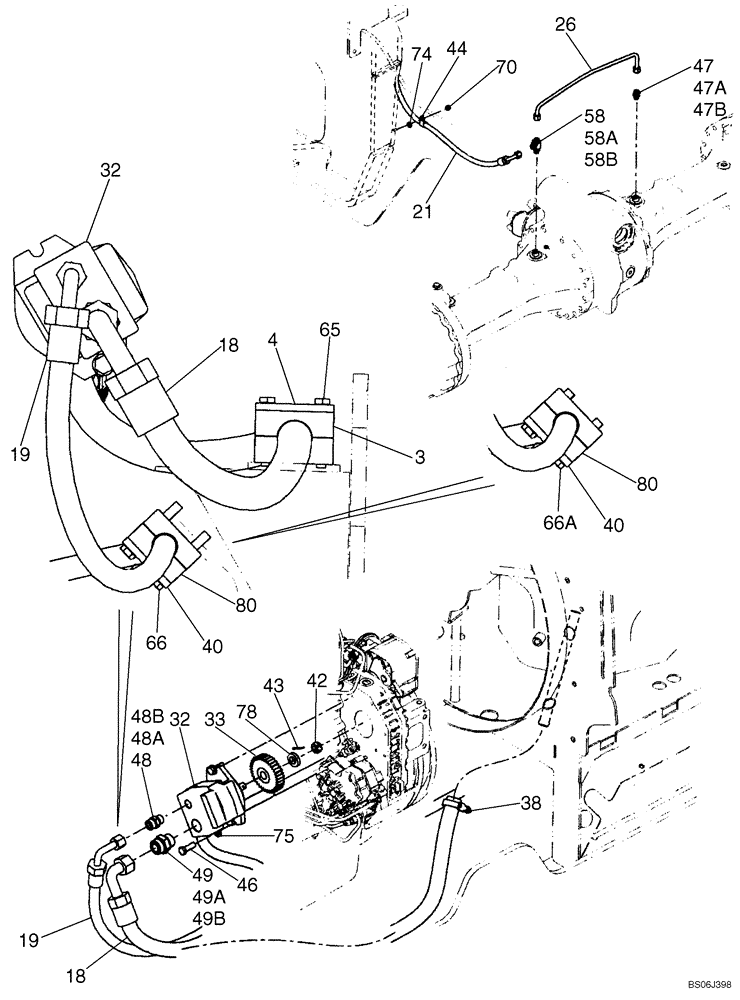

Запчасти Case 821E (07-03A) - HYDRAULICS - BRAKE, MAIN - REAR AXLE - PUMP (07) - BRAKES

3

8500621

BLOCK

Tube Mounting

1шт.

4

8500858

PLATE

Clamp Cover

1шт.

18

87326001

HOSE ASSY.

1141mm (45 in); Brake Pump Suction

1шт.

19

87534050

HOSE ASSY.,15.88mm ID x 2548mm L, SAE 100R17

2508mm (99 in); Brake Pump Pressure

1шт.

21

87326004

HOSE ASSY.

1167mm (46 in); Rear Axle Brake

1шт.

26

87326265

TUBE,12.70 mm OD

Rear Axle Brake

1шт.

32

87342166

HYDRAULIC PUMP,23.6 CC

Brake See Figure 07-04

1шт.

87342166R

REMAN-HYD PUMP

821E TIER 3 NA/EU (8/06-)

1шт.

87342166C

CORE-INJECTION PUMP

Return Number

1шт.

33

87389871

GEAR

Accessory Driver

1шт.

38

353036A1

HOSE CLAMP,32mm - 54mm

Constant Torque

1шт.

40

367658A1

PLATE

Clamp Cover

1шт.

42

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

43

733-3232

COTTER PIN,M3.2 x 32

1шт.

44

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

46

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

47

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 47A, 47B

1шт.

47a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

47b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

48

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 48A, 48B

3шт.

48a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

48b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

49

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 49A, 49B

1шт.

49a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

49b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

58

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 58A, 58B

1шт.

58a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

2шт.

58b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

65

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

66

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

If Used

2шт.

66a

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

If Used

2шт.

70

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

74

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

75

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

78

87373112

WASHER,20mm ID x 36mm OD x 7.5mm Thk

Gear Mount; Used With Ref 8

1шт.

80

8606002

CLAMP

Tube Mounting

1шт.
