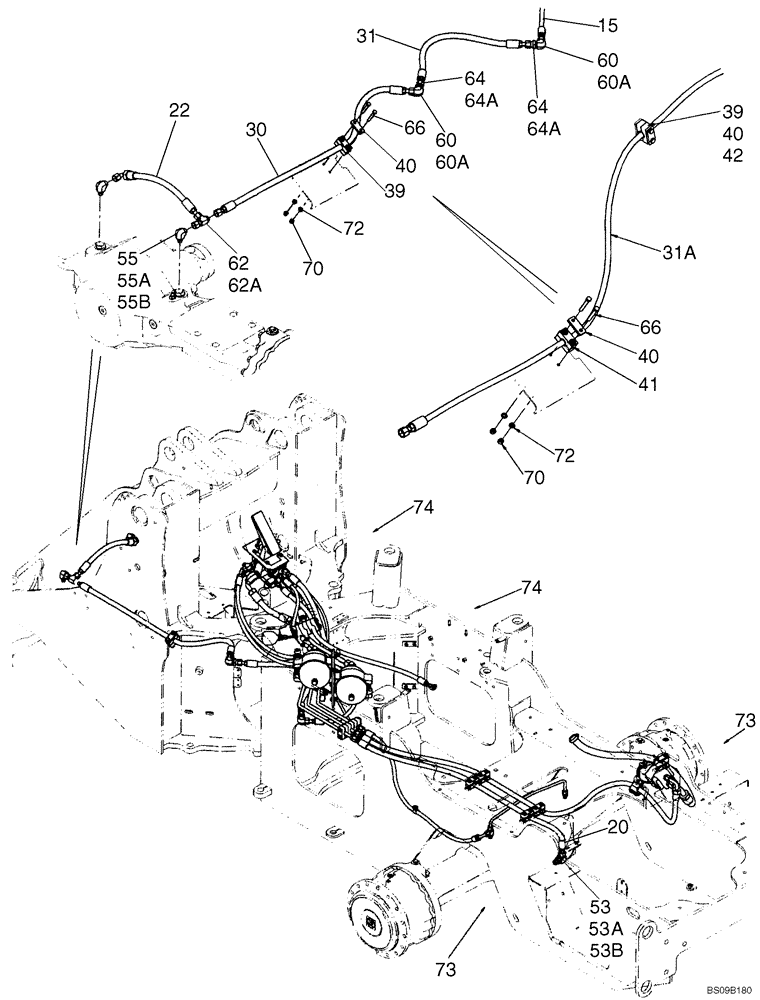

Запчасти Case 821E (07-03) - HYDRAULICS - BRAKE, MAIN - FRONT AXLE (07) - BRAKES

15

87325998

HOSE ASSY.

1536mm ( 65 in ); Front Axle Brake; If Used

1шт.

20

87617158

HOSE ASSY.

1512 mm (59 - 1/2 in); Fan Supply; Replaces 87354482 Hose 1462 mm (58 in) Used on Some Models

1шт.

22

87326006

HOSE ASSY.

512mm ( 20 in ); Front Axle Jump

1шт.

30

87339339

HOSE ASSY.

1305mm (53 in ); Front Axle Brake; If Used

1шт.

31

87339340

HOSE ASSY.

808mm (32 in ); Articulation; If Used

1шт.

31a

84168408

HOSE ASSY.

HOSE ASSY., Front Axle Brake, 3260 mm (128 - 11/32 in); If Used

1шт.

39

367489A1

BLOCK

Mounting

1шт.

40

367658A1

PLATE

Clamp Cover

1-2шт.

41

379374A1

BLOCK

Mounting, If Used

1шт.

42

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

If Used

1шт.

53

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 53A, 53B

2шт.

53a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

53b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

55

700-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl. 55A, 55B

1шт.

55a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

55b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

60

701-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl. 60A; If Used

1шт.

60a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

62

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. 62A

1шт.

62a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

64

701-919

BHD LOCK NUT,1" - 14

Incl. 64A

2шт.

64a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

66

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

2шт.

70

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

72

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

73

REF

INSTRUCTION

REAR AXLE BRAKE AND PUMP INSTALLATION; See Figure 07-03A

1шт.

74

REF

INSTRUCTION

BRAKE VALVE - ACCUMULATOR - VALVE; See Figure 07-03B - 03C

1шт.
