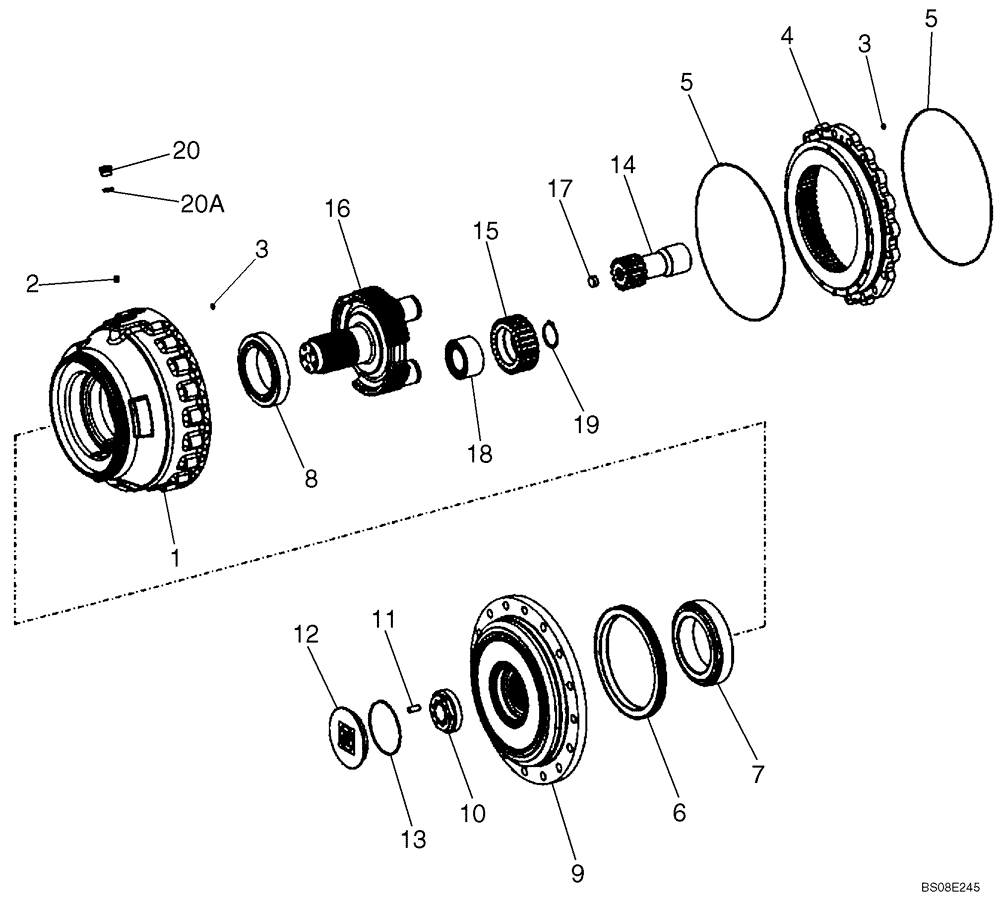

Запчасти Case 821E (06-51A) - AXLE, REAR - HUB, PLANETARY - P.I.N. N8F203870 AND AFTER (06) - POWER TRAIN

87568458

REAR AXLE

Incl. Parts On Figures 06-47 - 06-49, 06-50A, 06-51A; P.I.N. N8F203870 And After

1шт.

87568458R

REMAN-REAR AXLE

821E P.I.N. N8F203870 AND AFTER TIER 3 (8/06-)

1шт.

87568458C

CORE-REAR AXLE

Return Number

1шт.

87757156

REDUCER

Incl. Parts On Fig. 06-50A, Incl. Refs. 1 - 22

2шт.

1

84149185

HOUSING

Replaces 87757157

1шт.

2

8603673

PLUG

1шт.

3

384294A1

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

4шт.

4

8603610

GEAR

Ring

1шт.

5

8603674

O-RING,2.5mm Thk x 362mm ID, 70 Duro

2шт.

6

84150634

SEAL

SEALRING Replaces 8603562

1шт.

7

8603611

TAPERED BEARING,140mm ID x 210mm OD x 45mm W

1шт.

8

8603612

ROLLER BEARING

1шт.

9

87521573

FLANGE

Output

1шт.

10

8603565

NUT

1шт.

11

384302A1

PIN

1шт.

12

384303A1

COVER

1шт.

13

331982A1

O-RING

1шт.

14

8603614

GEAR

Shaft

1шт.

15

87758635

PLANETARY GEAR

3шт.

16

87757159

PLANET CARRIER

1шт.

17

384309A1

BOLT

1шт.

18

87758637

BEARING, ROLLER, CYL

Inner

3шт.

19

87758638

RING

Inner

3шт.

20

8603575

PLUG

Brake Port; Incl. Ref. 20A

1шт.

20a

8603208

O-RING,2mm Thk x 21mm ID

1шт.
