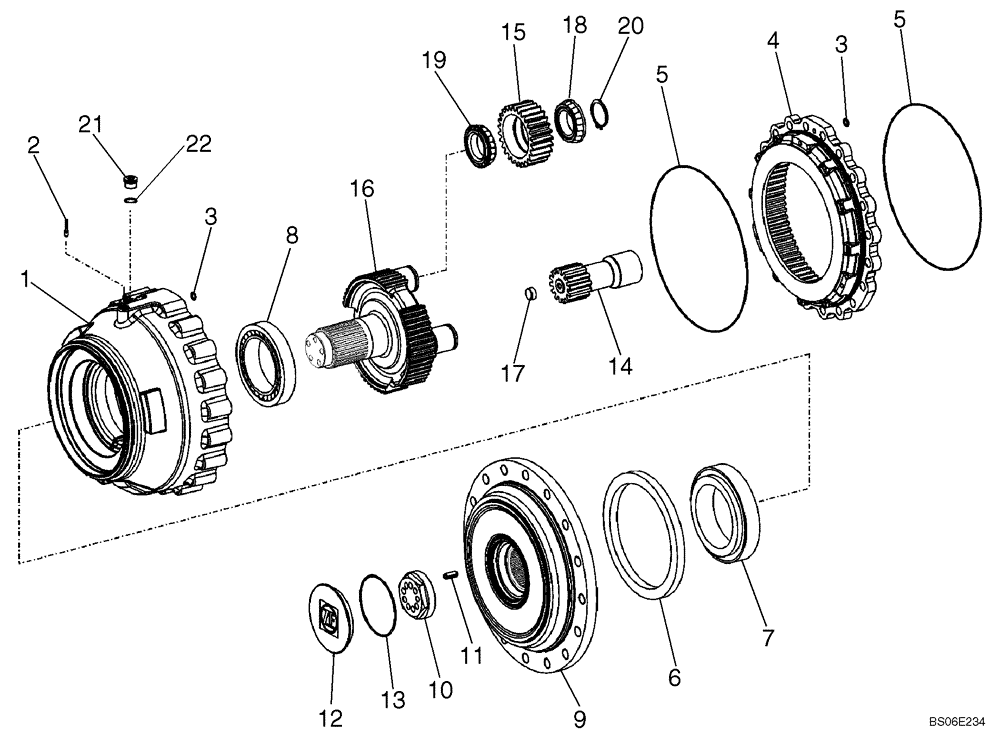

Запчасти Case 821E (06-51) - AXLE, REAR - HUB, PLANETARY - PRIOR TO P.I.N. N8F203870 (06) - POWER TRAIN

87306328

REAR AXLE

Incl. Parts On Figures 06-47 - 06-50, 06-51; Prior To P.I.N. N8F203870

1шт.

87306328R

REMAN-REAR AXLE

821E TIER 3, (8/06-)

1шт.

87306328C

CORE-REAR AXLE

Return Number

1шт.

87521421

PLANETARY REDUCER

Incl. Parts On Figure 06-50, Incl. Refs. 1 - 22

1шт.

87524985

REMAN-WHEEL END ASSY

REMANUFACTURED REAR WHEEL END/AXLE - NA Only

1шт.

87524984

CORE-WHEEL END ASSY

Return Number, REAR WHEEL END/AXLE - NA Only

1шт.

1

84149185

HOUSING

Brake; Replaces 87437915

1шт.

2

NSS

NOT SOLD SEPARAT

Plug

1шт.

3

384294A1

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

4шт.

4

8603610

GEAR

Ring

1шт.

5

8603674

O-RING,2.5mm Thk x 362mm ID, 70 Duro

2шт.

6

84150634

SEAL

SEALRING Replaces 8603562

1шт.

7

8603611

TAPERED BEARING,140mm ID x 210mm OD x 45mm W

1шт.

8

8603612

ROLLER BEARING

1шт.

9

87521573

FLANGE

Output

1шт.

10

8603565

NUT

1шт.

11

384302A1

PIN

1шт.

12

384303A1

COVER

1шт.

13

331982A1

O-RING

1шт.

14

8603614

GEAR

Shaft

1шт.

15

8603615

GEAR

Planetary

3шт.

16

87437909

PLANET CARRIER

1шт.

17

384309A1

BOLT

1шт.

18

8603617

ROLLER BEARING

Inner

6шт.

19

8603618

ROLLER BEARING

Inner

6шт.

20

8603790

RETAINER

6шт.

21

8603575

PLUG

Brake Port

1шт.

22

8603208

O-RING,2mm Thk x 21mm ID

1шт.
