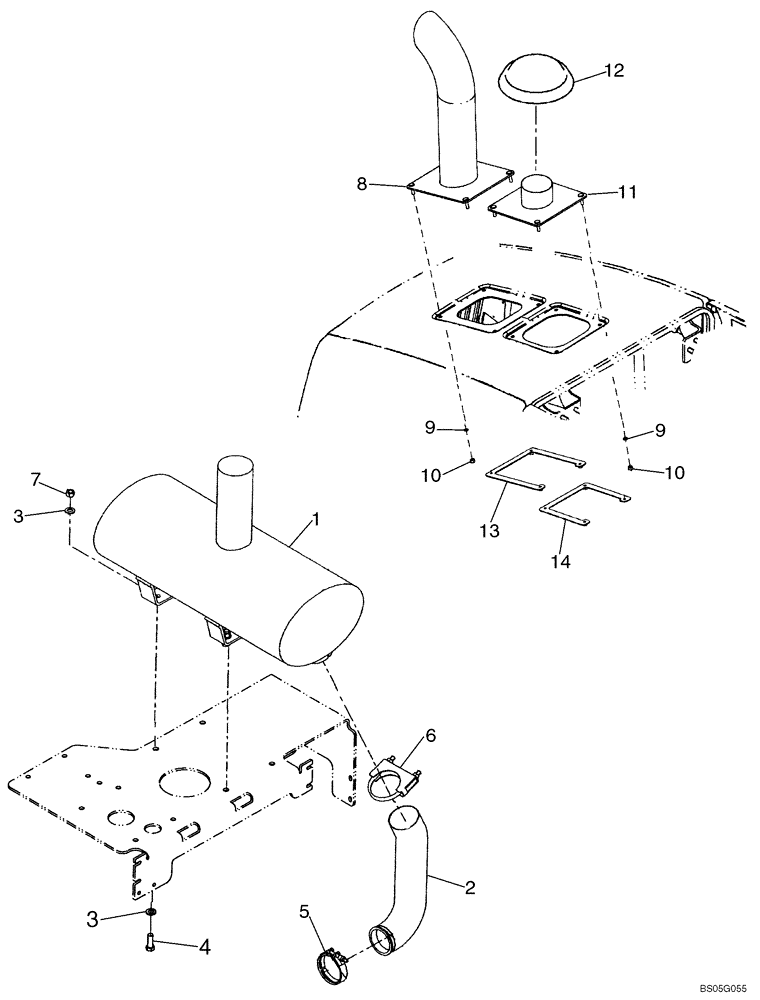

Запчасти Case 821E (02-07) - MUFFLER - EXHAUST AND INTAKE (02) - ENGINE

1

87365731

MUFFLER

Standard

1шт.

2

87365709

TUBE,72.2 mm ID x 76.2 mm OD x 350, 116 mm L

Exhaust

1шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

4

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

5

J903652

CLAMP

1шт.

6

299456A1

CLAMP,80.5mm ID

1шт.

7

829-1412

NUT,M12, Cl 10.9

4шт.

8

8500375

EXHAUST SYSTEM PIPE

1шт.

9

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

11

8500379

AIR INTAKE

Intake

1шт.

12

8501036

CAP

Rain

1шт.

13

408196A1

PLATE

Exhaust Backing

1шт.

14

8500382

PLATE

Intake Backing

1шт.
