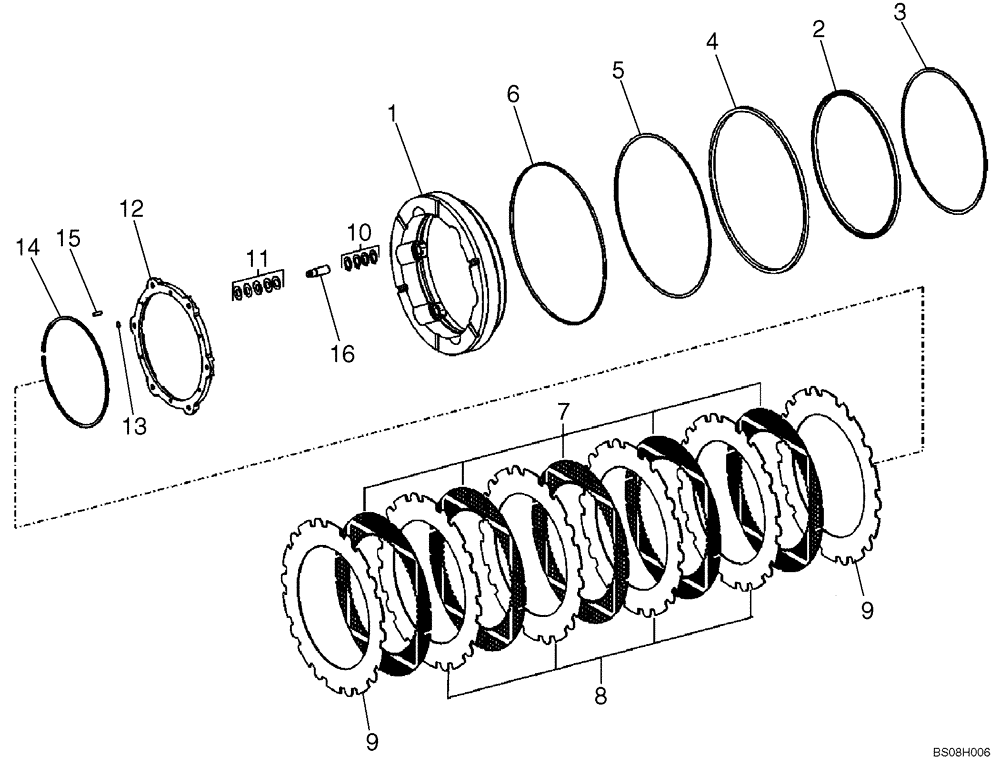

Запчасти Case 821E (06-50) - AXLE, REAR - HUB, DISC BRAKES - PRIOR TO P.I.N. N8F203870 (06) - POWER TRAIN

87306328

REAR AXLE

Incl. Parts On Figures 06-47 - 06-50, 06-51; Prior To P.I.N. N8F203870

1шт.

87306328R

REMAN-REAR AXLE

821E TIER 3, (8/06-)

1шт.

87306328C

CORE-REAR AXLE

Return Number

1шт.

87521421

PLANETARY REDUCER

Incl. Parts On Figure 06-51, Incl. Refs. 1 - 16

2шт.

87524985

REMAN-WHEEL END ASSY

REMANUFACTURED REAR WHEEL END/AXLE - NA Only

1шт.

87524984

CORE-WHEEL END ASSY

Return Number, REAR WHEEL END/AXLE - NA Only

1шт.

1

8603165

PISTON

Brake

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

1шт.

3

8603577

RING

Piston Seal Support

1шт.

4

8605315

SEAL

U-Ring

1шт.

5

8603579

RING

Piston Seal Support

1шт.

6

8603580

SNAP RING

Brake Piston Guide

1шт.

87365253

REPAIR KIT

Brake Pack Replacement, Incl Parts For One Complete Axle (Two Wheel Ends); Incl. (2X) Refs. 7 - 9

1шт.

87482111

REPAIR KIT

Bronze Brake Upgrade; Incl (12) 8603163 Brake Adjusters; (12) 87521419 Separator Plates, (10) 87521418 Bronze Brake Discs, and (6) 87588632 Damper Plates; Parts Are Shown Individually On Fig. 06-43A

1шт.

7

87341835

BRAKE DISC

NSS, Please Order P/N 87365253 Kit, Incl 7 - 9, Parts For One Complete Axle (Two Wheel Ends)

5шт.

8

8603582

BRAKE PLATE

Brake Separator, 4.0mm, NSS, Please Order P/N 87365253 Kit, Incl 7 - 9, Parts For One Complete Axle (Two Wheel Ends)

7шт.

9

87441328

PLATE,2mm Thk

2.0mm, NSS, Please Order P/N 87365253 Kit, Incl 7 - 9, Parts For One Complete Axle (Two Wheel Ends)

2шт.

10

8603583

SEAL

24шт.

11

8603584

BELLEVILLE WASHER

42шт.

12

8603162

SHIM

Belleville

1шт.

13

87408035

SNAP RING

10 x 1 mm

6шт.

14

8603585

SNAP RING

1шт.

15

838-5620

LOCK PIN,M6 x 20, Slotted

6шт.

16

8603163

PIN

6шт.
