(06-49) - AXLE, REAR - DIFFERENTIAL

Запчасти Case 821E (06-49) - AXLE, REAR - DIFFERENTIAL (06) - POWER TRAIN

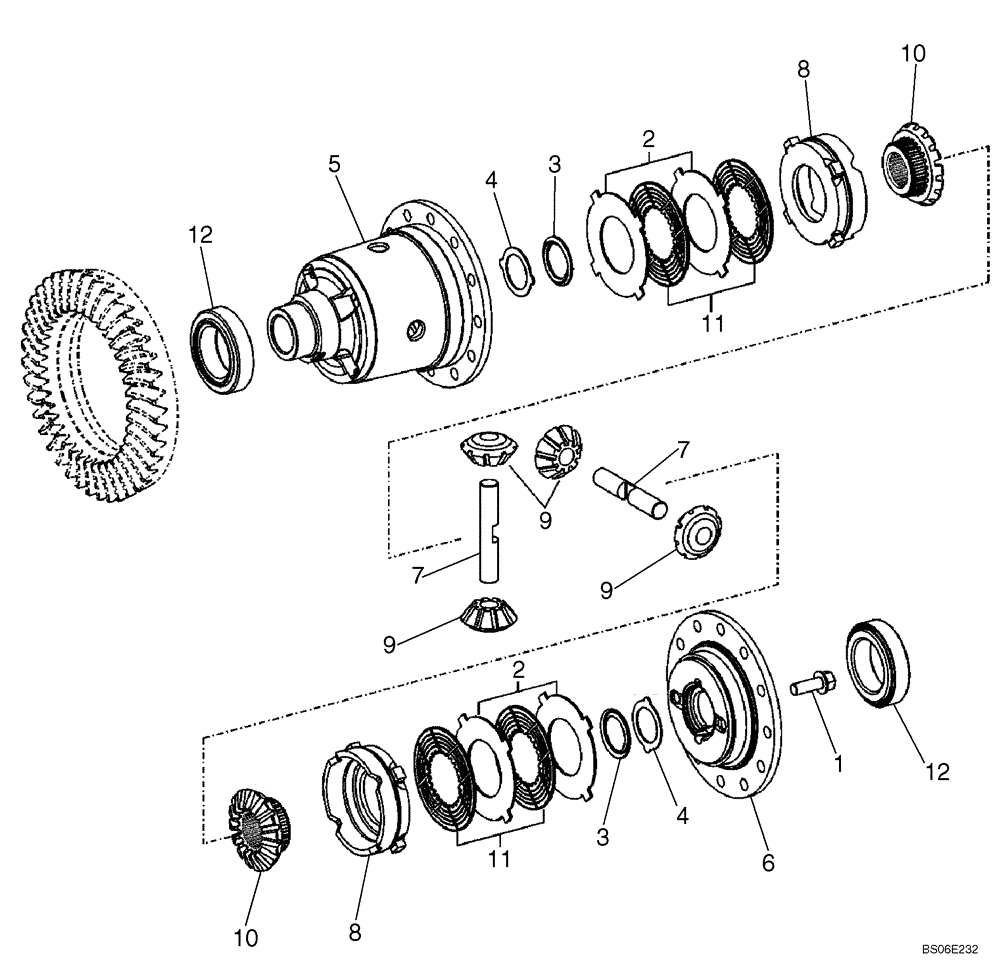

Схема запчастей Case 821E - (06-49) - AXLE, REAR - DIFFERENTIAL (06) - POWER TRAIN
12
3
3
8
9
9
5
4
10
2
11
6
7
8
9
1
7
10
2
12
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87306328

REAR AXLE

Incl. Parts On Figures 06-47 - 06-50, 06-51; Prior to P.I.N. N8F203870

1шт.

87306328R

REMAN-REAR AXLE

821E TIER 3, (8/06-)

1шт.

87306328C

CORE-REAR AXLE

Return Number

1шт.

87568458

REAR AXLE

Incl. Parts On Figures 06-47 - 06-49, 06-50A, 06-51A; P.I.N. N8F203870 And After

1шт.

87568458R

REMAN-REAR AXLE

821E P.I.N. N8F203870 AND AFTER TIER 3 (8/06-)

1шт.

87568458C

CORE-REAR AXLE

Return Number

1шт.

87521727

DIFFERENTIAL ASSY

Incl. Refs. 1 - 12

1шт.

1

8603273

BOLT

M16 x 45

12шт.

2

87521431

PLATE

2,9 mm; Outer Clutch

4шт.

2

87521432

PLATE

3,0 mm; Outer Clutch

4шт.

2

87521433

CLUTCH PLATE

3,1 mm; Outer Clutch

4шт.

3

8603596

WASHER

2шт.

4

8603597

SHIM

End

2шт.

5

8605619

HOUSING

Differential

1шт.

6

8603599

COVER

Differential

1шт.

7

8603600

SHAFT

Limited Slip

2шт.

8

8603601

DIVIDER

2шт.

9

87521434

DIFFERENTIAL GEAR

4шт.

10

87521435

DIFFERENTIAL GEAR

2шт.

11

8603203

PLATE

Diff Drive

4шт.

12

8603226

ROLLER BEARING

2шт.
