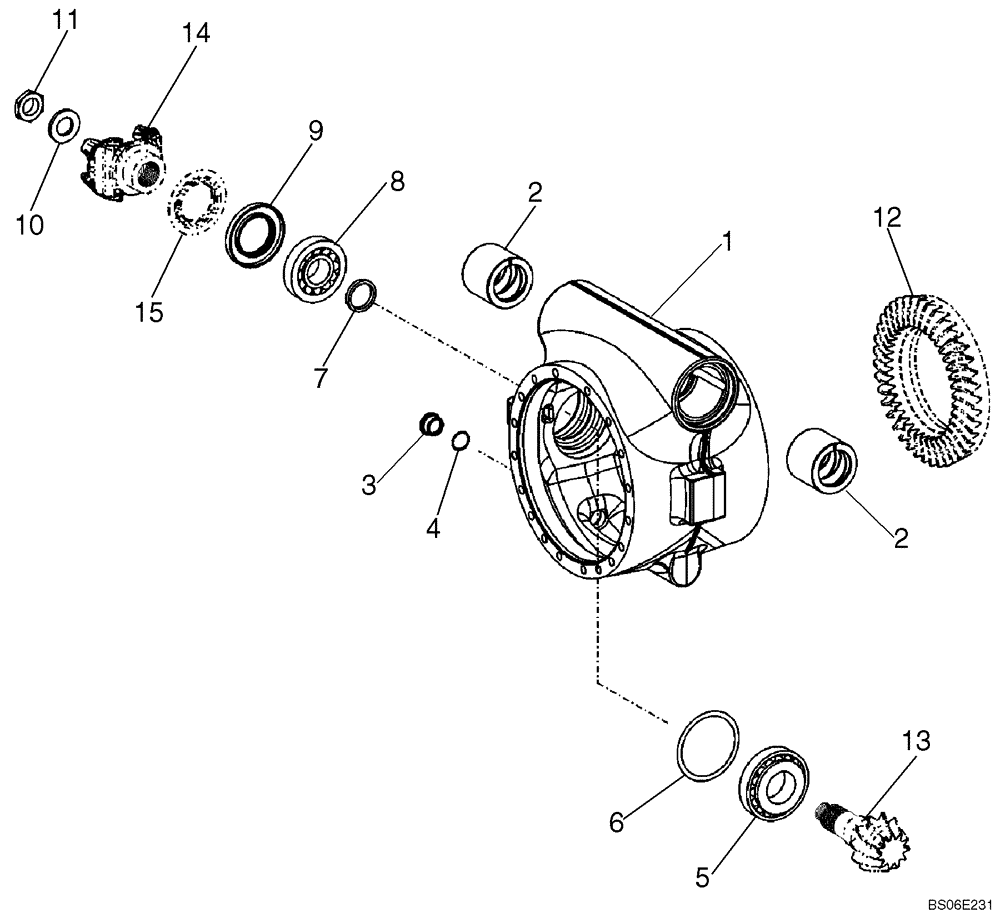

Запчасти Case 821E (06-48) - AXLE, REAR - DRIVE ASSEMBLY (06) - POWER TRAIN

87306328

REAR AXLE

Incl. Parts On Figures 06-47 - 06-50, 06-51; Prior to P.I.N. N8F203870

1шт.

87306328R

REMAN-REAR AXLE

821E TIER 3, (8/06-)

1шт.

87306328C

CORE-REAR AXLE

Return Number

1шт.

87568458

REAR AXLE

Incl. Parts On Figures 06-47 - 06-49, 06-50A, 06-51A; P.I.N. N8F203870 And After

1шт.

87568458R

REMAN-REAR AXLE

821E P.I.N. N8F203870 AND AFTER TIER 3 (8/06-)

1шт.

87568458C

CORE-REAR AXLE

Return Number

1шт.

1

87521426

AXLE HOUSING

Axle Input Drive

1шт.

2

87521427

BUSHING

Rear Axle Pivot

2шт.

3

87521428

PLUG

Magnet; M36 x 1.5

1шт.

4

8605636

O-RING,2.2mm Thk x 33mm ID

33 x 2.2

1шт.

5

8603227

ROLLER BEARING,65mm ID x 140mm OD x 36mm W

Front; Used On Axle 87306328

1шт.

5

87757160

TAPERED BEARING

Front; Used On Axle 87568458

1шт.

6

8603228

WASHER,0.7mm Thk

1шт.

6

8603229

SHIM,0.8mm Thk

1шт.

6

8603230

SHIM,0.9mm Thk

1шт.

6

8603231

SHIM,1mm Thk

1шт.

6

8603232

SHIM,1.1mm Thk

1шт.

6

8603233

SHIM,1.2mm Thk

1шт.

6

8603234

SHIM,1.3mm Thk

1шт.

6

8603235

SHIM,1.4mm Thk

1шт.

6

8603236

SHIM,1.5mm Thk

1шт.

6

8603237

SHIM,0.2mm Thk

1шт.

6

8603238

SHIM,0.1mm Thk

1шт.

7

8603239

SPACER,8.80 mm

8,8 mm

1шт.

7

8603789

SPACER,8.70 mm

8,7 mm

1шт.

7

8603794

SPACER,8.60mm

8,6 mm

1шт.

7

8603793

SPACER,8.50 mm

8,5 mm

1шт.

7

8603792

SPACER,8.40 mm

8,4 mm

1шт.

7

8603791

SPACER,8.30 mm

8,3 mm

1шт.

7

8603240

SPACER,8.90 mm

8,9 mm

1шт.

7

8603241

SPACER,9.10 mm

9,1 mm

1шт.

7

8603242

WASHER,9.20 mm

9,2 mm

1шт.

7

8603243

SPACER,9.30 mm

9,3 mm

1шт.

7

8603244

SPACER,9.40 mm

9,4 mm

1шт.

8

8603245

ROLLER BEARING,50.8mm ID x 82mm OD x 21.98mm W

Left-Hand

1шт.

9

8603247

SEAL,75mm ID x 125mm OD

Rear

1шт.

10

8603248

WASHER,36mm ID x 64.6mm OD x 5.8mm Thk

1шт.

11

8605616

NUT

Hexagon

1шт.

384423A1

BEVEL GEAR

Incl. Ref 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Gear

1шт.

13

NSS

NOT SOLD SEPARAT

Shaft

1шт.

14

119321A1

FLANGE

Input

1шт.

15

8604975

SEAL PROTECTION

Dust Cap; Used On Axle 87306328

1шт.

15

87742958

PROTECTOR

Used On Axle 87568458

1шт.
