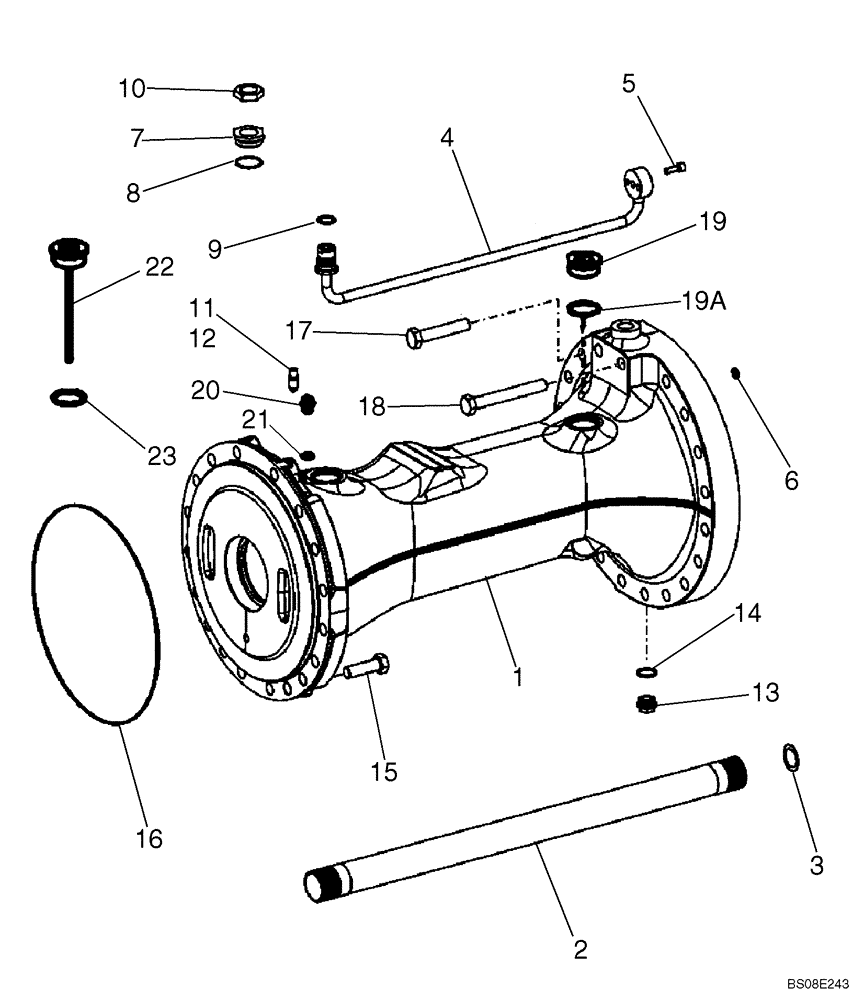

Запчасти Case 821E (06-47) - AXLE, REAR - HOUSING (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
87306328
REAR AXLE
Incl. Parts On Figures 06-47 - 06-50, 06-51; Prior to P.I.N. N8F203870
1шт.
87306328R
REMAN-REAR AXLE
1шт.
87306328C
CORE-REAR AXLE
Return Number
1шт.
87568458
REAR AXLE
Incl. Parts On Figures 06-47 - 06-49, 06-50A, 06-51A; P.I.N. N8F203870 And AFter
1шт.
87568458R
REMAN-REAR AXLE
1шт.
87568458C
CORE-REAR AXLE
Return Number
1шт.
1
87521441
AXLE HOUSING
Axle Beam
2шт.
1a
87619832
SHIM
Beam Housing, 0.8 mm; Not Illustrated
1шт.
1a
87619833
SHIM
Beam Housing, 0.9 mm; Not Illustrated
1шт.
1a
87619834
SHIM
Beam Housing, 1.0 mm; Not Illustrated
1шт.
1a
87619835
SHIM
Beam Housing, 1.1 mm; Not Illustrated
1шт.
1a
87619836
SHIM
Beam Housing, 1.2 mm; Not Illustrated
1шт.
2
87521442
SHAFT
2шт.
3
8605309
SHIM,0.60mm Thk
1шт.
3
8605310
SHIM,1.00mm Thk
1шт.
3
8605311
SHIM,1.60mm Thk
1шт.
3
8605312
SHIM,2.00mm Thk
1шт.
3
8605313
SHIM,2.50mm Thk
Axle Shaft
1шт.
4
87521443
TUBE
Brake Internal
2шт.
5
87023131
BOLT,Hex, M8 x 25mm, Cl 8.8, Full Thd
4шт.
6
8603559
O-RING,2.5mm Thk x 12.5mm ID, 75 Duro
12 x 2.5
2шт.
7
8603696
FITTING
2шт.
8
8603207
O-RING,2.5mm Thk x 38mm ID
2шт.
9
8603725
O-RING
2шт.
10
8603619
TUBE NUT
2шт.
11
3222214R1
VALVE
Bleeder; Used On Axle 87306328
2шт.
11
76088742
VALVE
Bleeder; Used On Axle 87568458
2шт.
12
8603671
CAP
Dust; Used On Axle 87306328
2шт.
12
87757161
DUST CAP
Used On Axle 87568458
2шт.
12a
8603210
PLUG
Bleeder Valve Cover; Not Illustrated
2шт.
12b
8603799
RING
Valve Cover; Not Illustrated
2шт.
13
8603550
PLUG
2шт.
14
8603208
O-RING,2mm Thk x 21mm ID
2шт.
15
87521444
SCREW,Hex, M16 x 60mm
M18 x 60; Used On Axle 87306328
36шт.
15
71448875
SCREW
M18 x 60; Used On Axle 87568458
36шт.
16
87521445
O-RING,3mm Thk x 342mm ID
342 x 3
2шт.
17
8603603
BOLT
M18 x 95
36шт.
18
8603604
BOLT
M18 x 140
4шт.
19
A48791
PLUG
M42 x 1.5; Incl. Ref. 19A
1шт.
19a
87454993
O-RING
M42 x 1.5
1шт.
20
100113A1
PLUG
Screw, M10 x 1
2шт.
21
A52231
SEALING RING
2шт.
22
87757162
DIPSTICK
Axle Oil
1шт.
23
87454993
O-RING
1шт.
Выбрано товаров: 44
