(06-46A) - AXLE, FRONT - DIFFERENTIAL - P.I.N. N8F203870 AND AFTER

Запчасти Case 821E (06-46A) - AXLE, FRONT - DIFFERENTIAL - P.I.N. N8F203870 AND AFTER (06) - POWER TRAIN

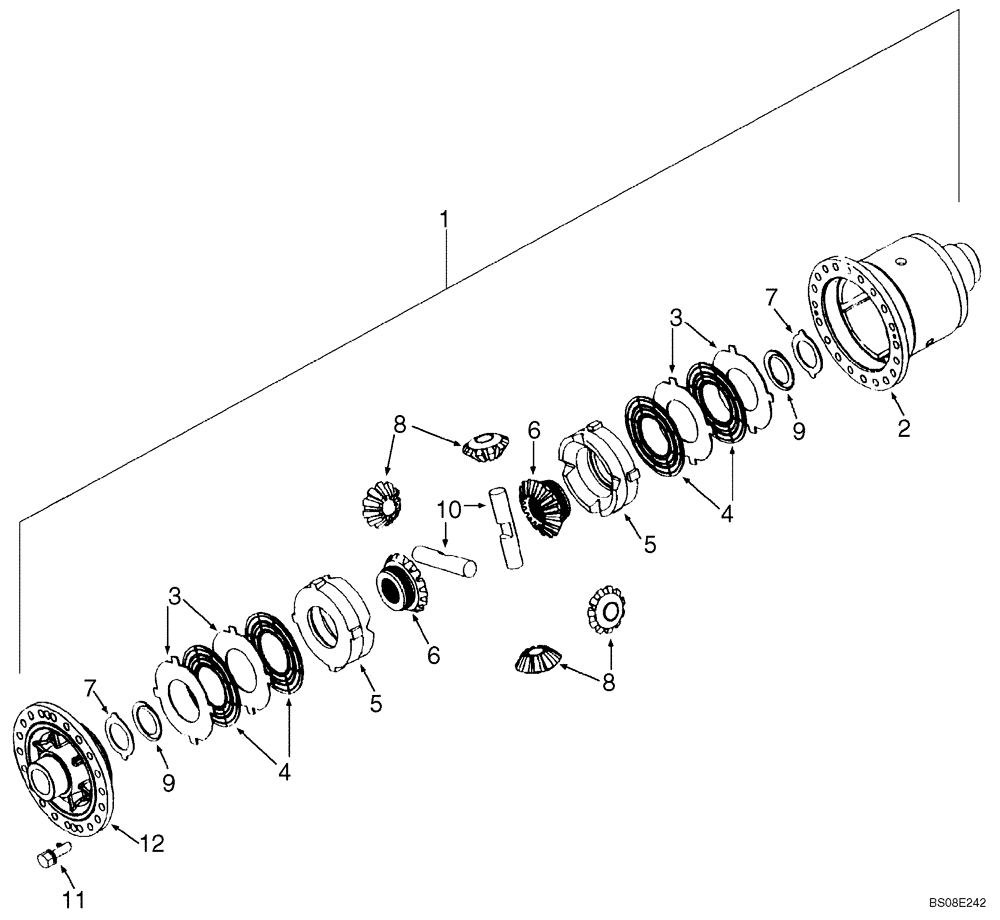

Схема запчастей Case 821E - (06-46A) - AXLE, FRONT - DIFFERENTIAL - P.I.N. N8F203870 AND AFTER (06) - POWER TRAIN
4
5
3
7
11
12
2
5
8
6
8
6
7
4
3
9
9
10
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87568457

FRONT AXLE

Incl. Parts On Figures 06-42, 06-43A, 06-44A, 06-45, 06-46A; P.I.N. N8F203870 And After

1шт.

87568457R

REMAN-FRONT AXLE

Incl. Parts On Figures 06-42, 06-43A, 06-44A, 06-45, 06-46A; P.I.N. N8F203870 And After

1шт.

87568457C

CORE-FRONT AXLE 4WD

Return Number

1шт.

384429A1

DIFFERENTIAL

Incl. Refs. 1 - 13, Also Incl. Parts On Figure 06-45

1шт.

1

87757171

DIFFERENTIAL ASSY

Incl. Refs. 2 - 13

1шт.

2

87757172

TRANSMISSION HOUSING

1шт.

3

87454125

DISC

3.0 mm; Outer

4шт.

3

87454126

DISC

2.7 mm; Outer

4шт.

3

87454127

DISC

2.9 mm; Outer

4шт.

3

87454128

DISC,3.1mm Thk

3.1 mm; Outer

4шт.

3

87454129

DISC,3.2mm Thk

3.2 mm; Outer

4шт.

3

87454130

DISC

3.3 mm; Outer

4шт.

4

242159A1

CLUTCH PLATE

CLUTCH DISK Intermediate; Inner

4шт.

5

243354A1

THRUST RING

Pressure

2шт.

6

242160A1

PINION

16T; Side

2шт.

7

120017A1

THRUST WASHER

Outer

2шт.

8

120018A1

PINION

4шт.

9

120019A1

THRUST WASHER

Inner

2шт.

10

120020A1

PIN

2шт.

11

184716A1

SCREW

20шт.

12

385426A1

COVER

1шт.
