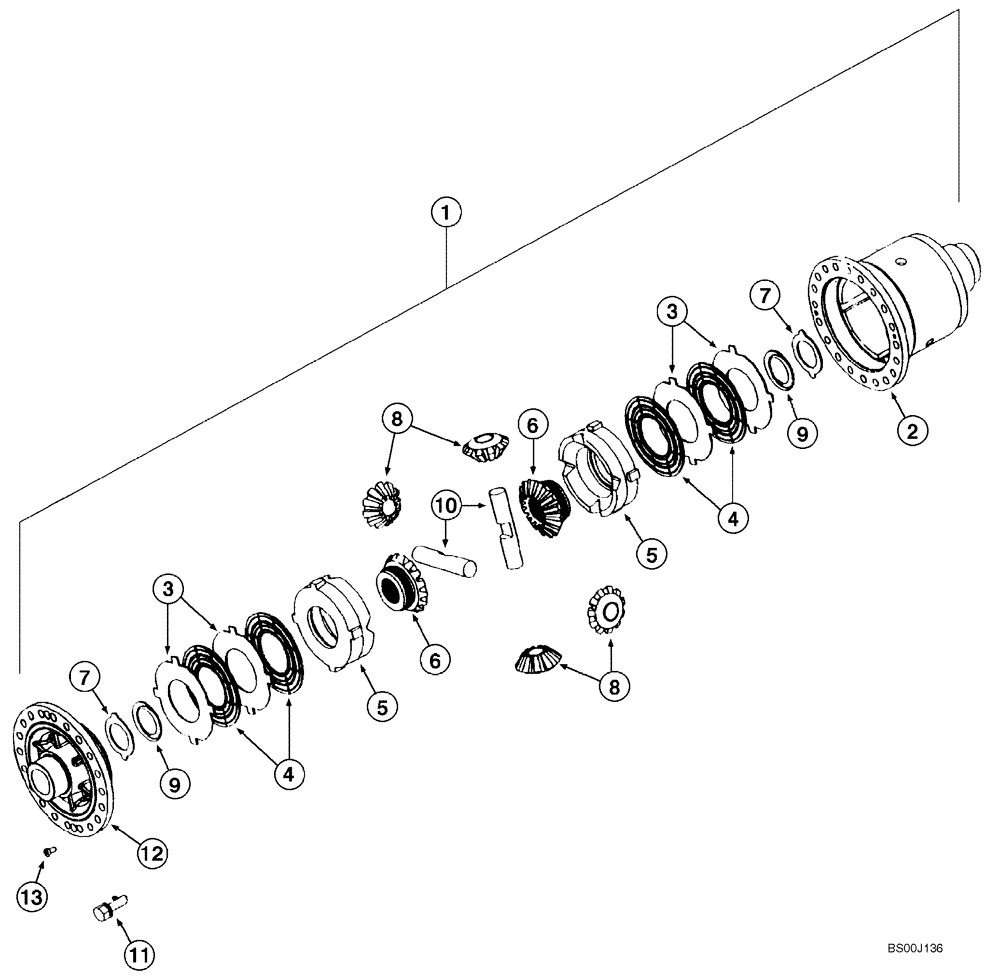

Запчасти Case 821E (06-46) - AXLE, FRONT - DIFFERENTIAL - PRIOR TO P.I.N. N8F203870 (06) - POWER TRAIN

87306327

FRONT AXLE

Incl. Parts On Figures 06-42, 06-43, 06-44, 06-45, 06-45; Prior To P.I.N. N8F203870

1шт.

87306327R

REMAN-FRONT AXLE

Incl. Parts On Figures 06-42, 06-43, 06-44, 06-45, 06-45; Prior To P.I.N. N8F203870

1шт.

87306327C

CORE-FRONT AXLE 4WD

Return Number

1шт.

384429A1

DIFFERENTIAL

Includes 384473A1 Limited Slip Differential, Ref 1 - 13; Also Includes Figure 06-45

1шт.

1

384473A1

AXLE DIFFERENTIAL

Limited Slip Differential; Incl. Refs. 2 - 13

1шт.

2

384474A1

HOUSING

1шт.

3

242155A1

CLUTCH DISC

CLUTCH DISK 2,9 mm; Outer

4шт.

3

242156A1

CLUTCH DISC

CLUTCH DISK 3,1 mm; Outer

4шт.

3

242157A1

CLUTCH PLATE

CLUTCH DISK 2,7 mm; Outer

4шт.

3

242158A1

CLUTCH PLATE

CLUTCH DISK 3,3 mm; Outer

4шт.

4

242159A1

CLUTCH PLATE

CLUTCH DISK Intermediate; Inner

4шт.

5

8605362

RING

Pressure

2шт.

6

242160A1

PINION

16T; Side

2шт.

7

120017A1

THRUST WASHER

Outer

2шт.

8

120018A1

PINION

4шт.

9

120019A1

THRUST WASHER

Inner

2шт.

10

120020A1

PIN

2шт.

11

184716A1

SCREW

20шт.

12

385426A1

COVER

1шт.

13

193152A1

BOLT

2шт.
