(06-44) - AXLE, FRONT - HUB, PLANETARY - PRIOR TO P.I.N. N8F203870

Запчасти Case 821E (06-44) - AXLE, FRONT - HUB, PLANETARY - PRIOR TO P.I.N. N8F203870 (06) - POWER TRAIN

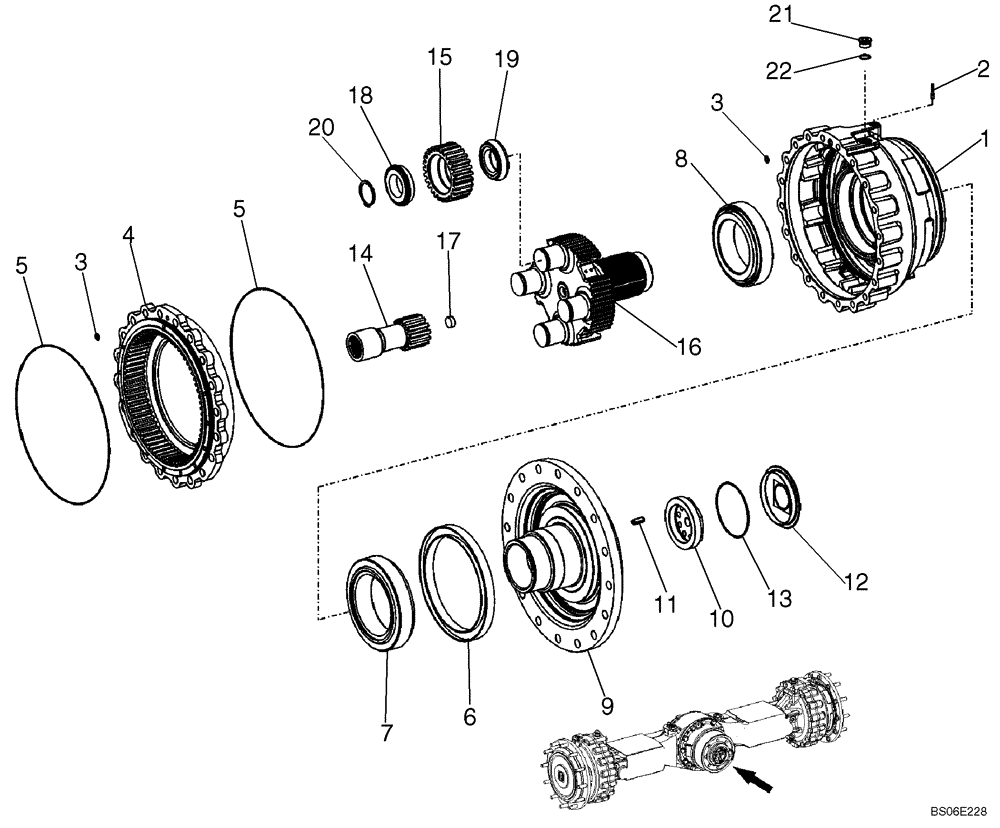

Схема запчастей Case 821E - (06-44) - AXLE, FRONT - HUB, PLANETARY - PRIOR TO P.I.N. N8F203870 (06) - POWER TRAIN
1
12
4
10
9
20
5
16
18
15
21
3
17
6
2
14
19
3
11
5
7
22
13
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87306327

FRONT AXLE

Incl. Parts On Figures 06-42, 06-43, 06-44, 06-45, 06-46; Prior To P.I.N. N8F203870

1шт.

87306327R

REMAN-FRONT AXLE

Incl. Parts On Figures 06-42, 06-43, 06-44, 06-45, 06-46; Prior To P.I.N. N8F203870

1шт.

87306327C

CORE-FRONT AXLE 4WD

Return Number

1шт.

87521420

PLANETARY REDUCER

End Assembly; Incl. Ref 1 - 15; Includes Figure 06-43

2шт.

87524971

REMAN-WHEEL END ASSY

REMANUFACTURED AXLE - NA Only

1шт.

87524970

CORE-WHEEL END ASSY

Return Number, AXLE - NA Only

1шт.

1

87437912

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG

1шт.

3

384294A1

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

1шт.

4

8603610

GEAR

1шт.

5

8603674

O-RING,2.5mm Thk x 362mm ID, 70 Duro

2шт.

6

84150634

SEAL

SEALRING Replaces 8603562

1шт.

7

384969A1

TAPERED BEARING

1шт.

8

8603563

TAPERED BEARING

1шт.

9

87521407

FLANGE

Output

1шт.

10

384540A1

NUT

1шт.

11

8603566

COTTER PIN

1шт.

12

8603567

COVER

1шт.

13

8603527

O-RING

1шт.

14

8603614

GEAR

Shaft

1шт.

15

8603615

GEAR

Planetary

4шт.

16

87437911

CARRIER,Planetary Gear

Planetary

1шт.

17

8603571

PLUG

1шт.

18

8603617

ROLLER BEARING

Inner

4шт.

19

8603618

ROLLER BEARING

Inner

4шт.

20

8603790

RETAINER

4шт.

21

8603575

PLUG

Brake Port

1шт.

22

8603208

O-RING,2mm Thk x 21mm ID

1шт.
