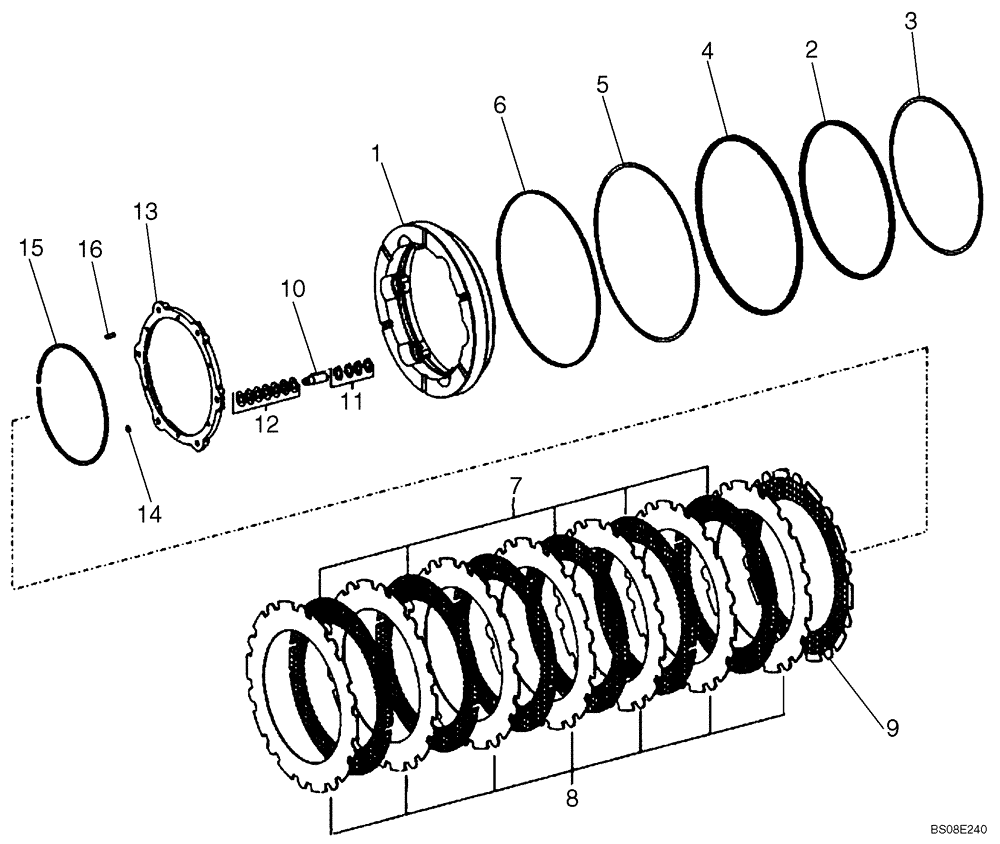

Запчасти Case 821E (06-43A) - AXLE, FRONT - HUB, DISC BRAKES - P.I.N. N8F203870 AND AFTER (06) - POWER TRAIN

87568457

FRONT AXLE

Incl. Parts On Figures 06-42, 06-43A, 06-44A, 06-45, 06-46A; P.I.N. N8F203870 And After

1шт.

87568457R

REMAN-FRONT AXLE

Incl. Parts On Figures 06-42, 06-43A, 06-44A, 06-45, 06-46A; P.I.N. N8F203870 And After

1шт.

87568457C

CORE-FRONT AXLE 4WD

Return Number

1шт.

87757174

PLANETARY REDUCER

Incl. Ref 1 - 15; Includes Figure 06-44A

2шт.

1

8603165

PISTON

Brake

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

1шт.

3

8603577

RING

Piston Seal Support

1шт.

4

8605315

SEAL

U-Ring

1шт.

5

8603579

RING

Piston Seal Support

1шт.

6

8603580

SNAP RING

Brake Piston Guide

1шт.

7

87521418

BRAKE DISC

6шт.

8

87521419

CLUTCH PLATE

Brake Separator; 2.4 mm, NSS, Please Order P/N 87475312 Kit, Incl 7 - 9, Parts For One Complete Axle (Two Wheel Ends)

7шт.

9

87588632

PLATE

Brake Damper, NSS, Please Order P/N 87475312 Kit, Incl 7 - 9, Parts For One Complete Axle (Two Wheel Ends)

1шт.

10

8603163

PIN

Brake Adjuster, NSS, Please Order P/N 87475312 Kit, Incl 7 - 9, Parts For One Complete Axle (Two Wheel Ends)

6шт.

11

8603583

SEAL

24шт.

12

8603584

BELLEVILLE WASHER

42шт.

13

8603162

SHIM

1шт.

14

87408035

SNAP RING

10 x 1 mm

6шт.

15

8603585

SNAP RING

1шт.

16

838-5620

LOCK PIN,M6 x 20, Slotted

6шт.
