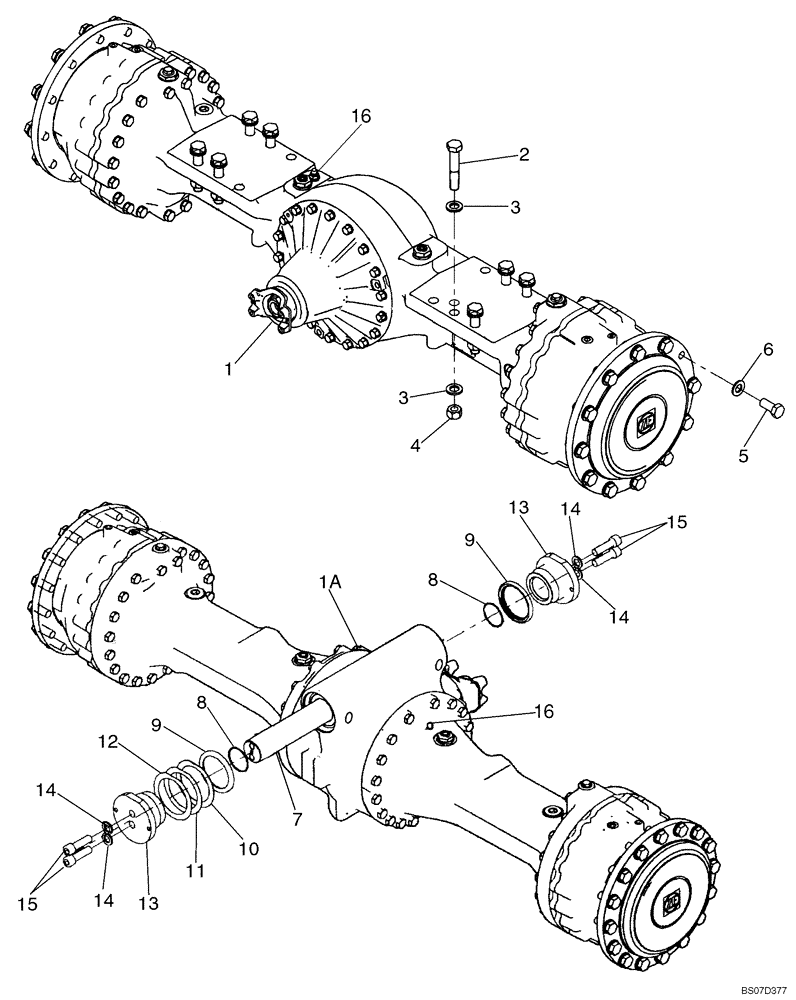

Запчасти Case 821E (06-40) - AXLE, FRONT AND REAR - MOUNTING (06) - POWER TRAIN

1

87306327

FRONT AXLE

New; Incl. Parts On Figures 06-42, 06-43, 06-44, 06-45, 06-46; Prior to P.I.N. N8F203870

1шт.

1

87306327R

REMAN-FRONT AXLE

Remanufactured Assy

1шт.

1

87306327C

CORE-FRONT AXLE 4WD

Return Number

1шт.

1

87568457

FRONT AXLE

New; Incl. Parts On Figures 06-42, 06-43A, 06-44A, 06-45, 06-46A; P.I.N. N8F203870 And After

1шт.

1

87568457R

REMAN-FRONT AXLE

New; Incl. Parts On Figures 06-42, 06-43A, 06-44A, 06-45, 06-46A; P.I.N. N8F203870 And After

1шт.

1

87568457C

CORE-FRONT AXLE 4WD

Return Number

1шт.

1a

87306328

REAR AXLE

New; Incl. Parts On Figures 06-47 - 06-50, 06-51; Prior to P.I.N. N8F203870

1шт.

1a

87306328R

REMAN-REAR AXLE

1шт.

1a

87306328C

CORE-REAR AXLE

Return Number

1шт.

1a

87568458

REAR AXLE

New; Incl. Parts On Figures 06-47 - 06-49, 06-50A, 06-51A; P.I.N. N8F203870 And After

1шт.

1a

87568458R

REMAN-REAR AXLE

1шт.

1a

87568458C

CORE-REAR AXLE

Return Number

1шт.

2

86541421

BOLT,Hex, M30 x 140mm, Cl 10.9

M30 x 40; 10.9

8шт.

3

896-11030

WASHER,33mm ID x 56mm OD x 5mm Thk

16шт.

4

829-1430

NUT,M30, Cl 10

8шт.

5

514-1315

BOLT,Hex, M22 x 1.5 x 50mm, Cl 10.9

24шт.

6

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

24шт.

7

87629586

PIN,72mm OD x 503mm L

Replaces 87318131

1шт.

8

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

2шт.

9

87715379

OIL SEAL,101.6mm ID x 127.1mm OD x 11.13mm Thk

Replaces 8500058

2шт.

10

8500055

SHIM,112.5mm ID x 147mm OD x 1.5mm Thk

1шт.

11

8500054

SHIM,112.5mm ID x 147mm OD x 1mm Thk

1шт.

12

8500053

SHIM,112.5mm ID x 147mm OD x 0.5mm Thk

1шт.

13

87731989

PIVOT

End Cap; Replaces 8500056

2шт.

14

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

15

863-20070

HEX SOC SCREW,M20 x 70mm, 12.9

4шт.

16

8603201

BREATHER

2шт.
