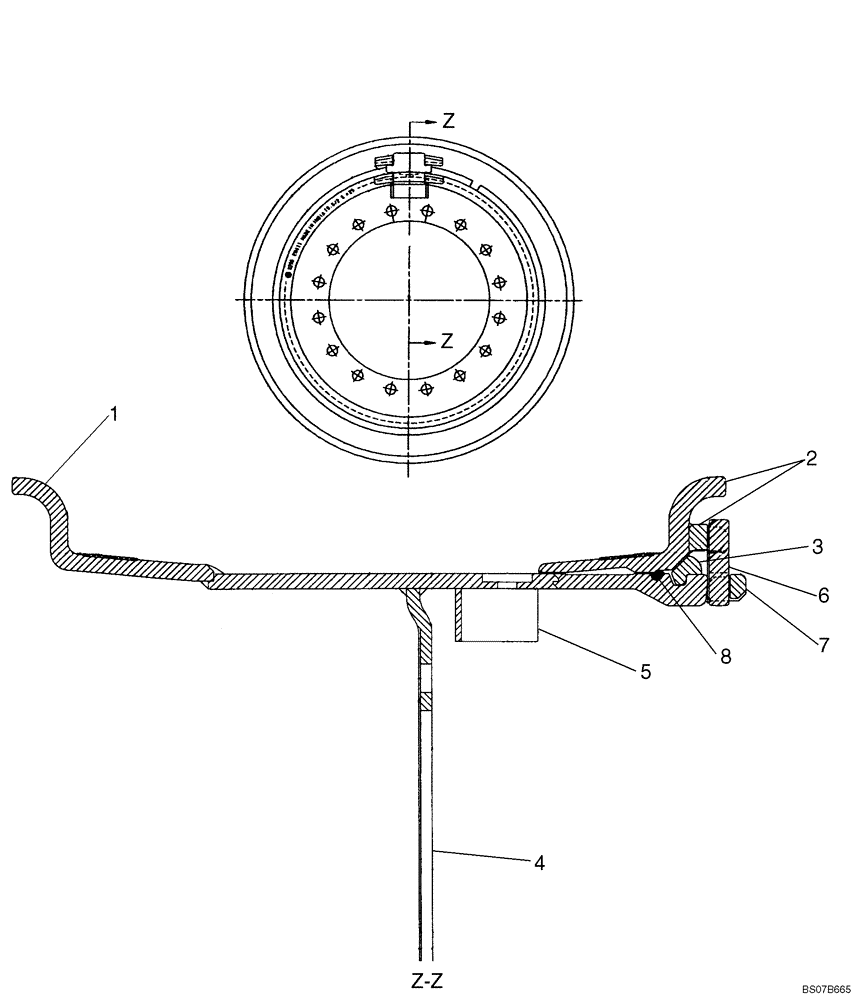

Запчасти Case 821E (06-39) - WHEELS (06) - POWER TRAIN

87397425

WHEEL ASSY.

Incl. 1 - 6

4шт.

1

87657352

RIM

Wheel; Incl. Refs. 4, 5, Gutter, Center Band, Fixed Flange, and Gutter Driver Pocket

1шт.

2

87398009

WHEEL ASSY

Driver Pocket

1шт.

3

87365513

LOCKING RING

1шт.

4

NSS

NOT SOLD SEPARAT

Disc

1шт.

5

NSS

NOT SOLD SEPARAT

Valve Guard

1шт.

6

87365511

WRENCH

KEY, LOCK Ring

1шт.

7

NSS

NOT SOLD SEPARAT

GUTTER, Driver Key

1шт.

8

NSS

NOT SOLD SEPARAT

O-ring

1шт.

REF

INSTRUCTION

FOLLOWING COMPONENTS NOT ILLUSTRATED

1шт.

A20058

VALVE STEM

1шт.

A16425

O-RING,10.29mm Thk x 573.02mm ID, 65 Duro

1шт.
