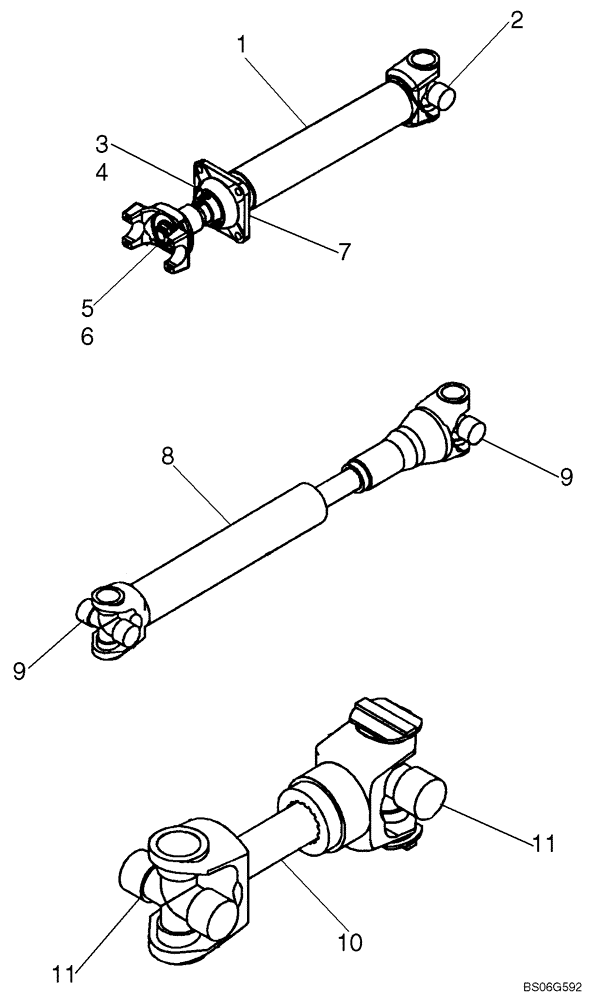

Запчасти Case 821E (06-37) - DRIVE SHAFT (06) - POWER TRAIN

87693673

DRIVE SHAFT

Front, Incl. Ref. 1-7; Replaces 87566009; See Fig. 06-36 For Mounting

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE

1шт.

2

87564081

U-JOINT SPIDER

1шт.

3

425-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

4

84-63812

SET SCREW,Hex Soc, 3/8"-24 x 3/4"

2шт.

5

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1шт.

6

8604270

LOCK NUT

1шт.

7

87314314

BEARING CARRIER,49.213 mm ID x 60.6 mm

1шт.

87307549

DRIVE SHAFT

Center, Incl. Ref. 8,9, See Fig. 06-36 For Mounting

1шт.

8

NSS

NOT SOLD SEPARAT

TUBE

1шт.

9

87564081

U-JOINT SPIDER

2шт.

87307548

DRIVE SHAFT

Rear, Incl. Ref. 10,11, See Fig. 06-36 For Mounting

1шт.

10

NSS

NOT SOLD SEPARAT

TUBE

1шт.

11

87564081

U-JOINT SPIDER

2шт.
