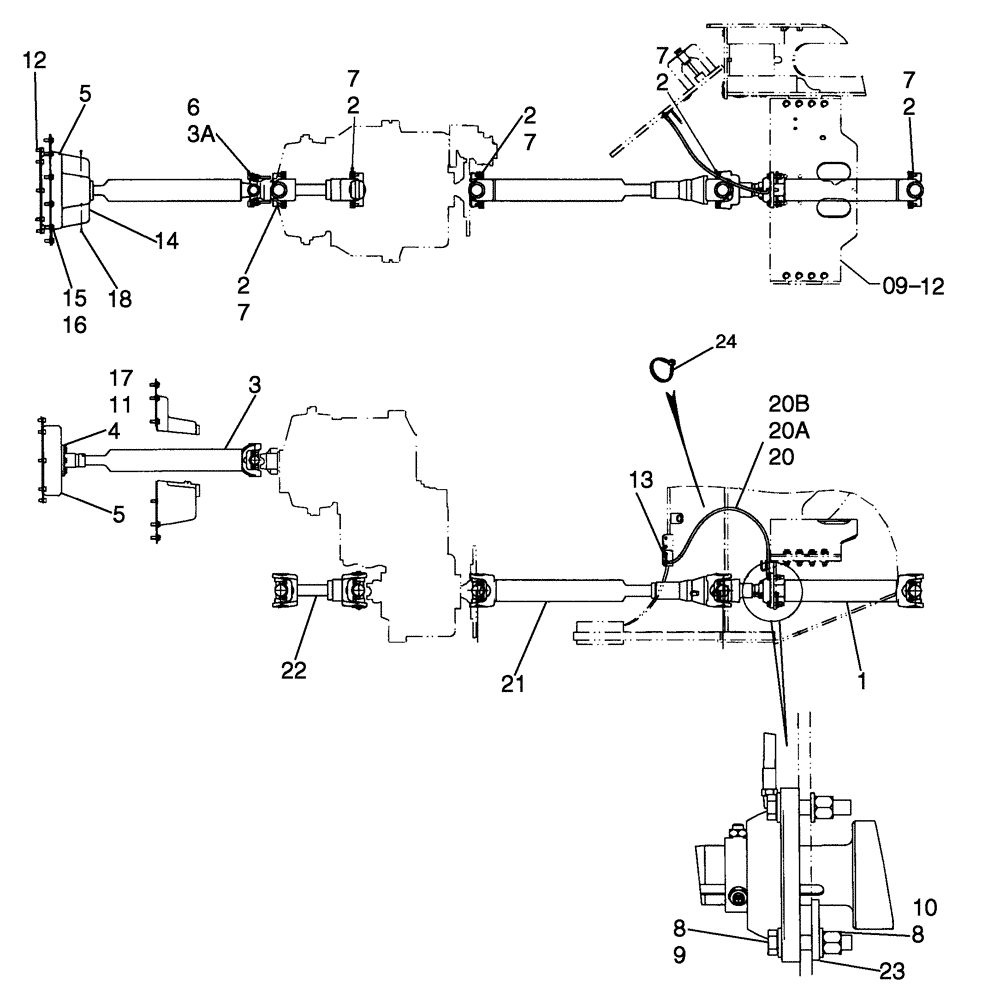

Запчасти Case 821E (06-36) - DRIVE SHAFT MOUNTING (06) - POWER TRAIN

1

87693673

DRIVE SHAFT

Front; Replaces 87566009; See Fig. 06-37

1шт.

2

87439403

STRAP

1шт.

87543930

SPECIAL CLAMP

For Service Order For 87439403

1шт.

3

87371646

DRIVE SHAFT

Incl. 3A

1шт.

3a

8604675

BEARING ASSY

1шт.

4

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

8шт.

5

8501111

COUPLING FLANGE

Flywheel to Drive Shaft

1шт.

6

L116943

SECURING STRAP

Bearing

12шт.

87539949

KIT

For Service Order In Place Of L116943

1шт.

7

19-6247

BOLT,3/8" - 24 x 0.75", Grade 8

3/8; 8

24шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

9

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

10

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

11

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

6шт.

12

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

8шт.

13

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

14

87522101

COVER

Fan

1шт.

15

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

If Used

9шт.

16

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

If Used

9шт.

17

345-49

SEALANT

# 242

1шт.

18

760-14113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

Used with Ref. 14

2шт.

20

313683A1

FLEXIBLE HOSE

1041 mm (41 in); Incl. 20A, 20B

1шт.

20a

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

20b

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

21

87307549

DRIVE SHAFT

Center, See Fig. 06-37

1шт.

22

87307548

DRIVE SHAFT

Rear, See Fig. 06-37

1шт.

23

87567190

PLATE

Carrier

1шт.

24

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.
