(06-35) - TRANSMISSION - FILTER, OIL AND FILLER COVER - P.I.N. N7F203144 AND AFTER

Запчасти Case 821E (06-35) - TRANSMISSION - FILTER, OIL AND FILLER COVER - P.I.N. N7F203144 AND AFTER (06) - POWER TRAIN

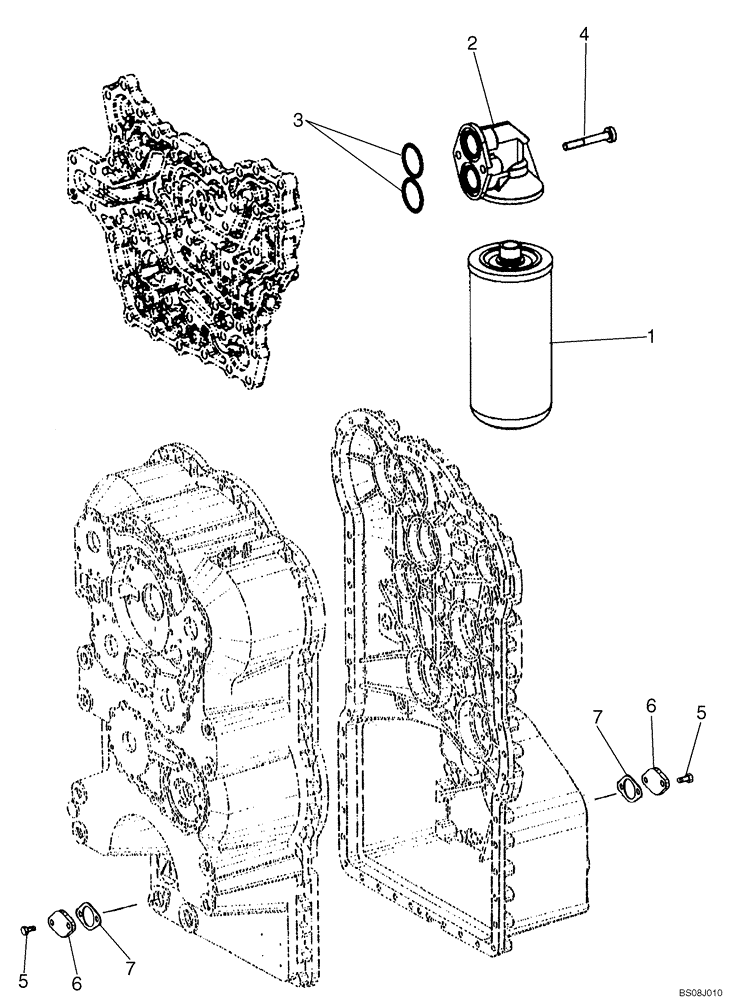

Схема запчастей Case 821E - (06-35) - TRANSMISSION - FILTER, OIL AND FILLER COVER - P.I.N. N7F203144 AND AFTER (06) - POWER TRAIN
2
5
1
6
5
4
5
7
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87671890

TRANSMISSION

See Figure 06-20 - 06-35, 07-01; P.I.N. N7F203144 And After

1шт.

87671890R

REMAN-TRANSMISSION

821E TIER 3 TRANSMISSION - FILTER, OIL AND FILLER COVER - P.I.N. N7F203144 AND AFTER (8/06 - )

1шт.

87671890C

CORE-TRANSMISSION

Return Number

1шт.

1

87519452

HYDRAULIC OIL FILTER

Transmission

1шт.

2

8603403

FILTER HEAD

Transmission

1шт.

3

87712670

O-RING

2шт.

4

8603311

SCREW

2шт.

5

8603396

BOLT,Hex, M8 x 18mm

M8 x 18

4шт.

6

153242220

COVER

2шт.

7

8479287

GASKET,0.35mm Thk

2шт.
