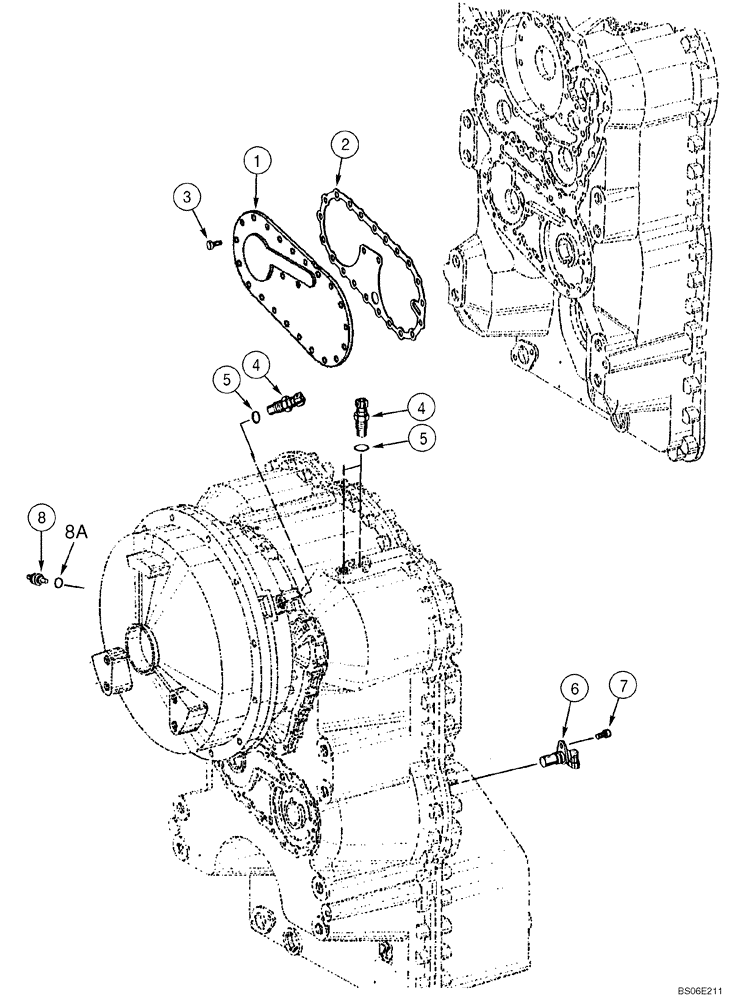

Запчасти Case 821E (06-34) - TRANSMISSION - SENSOR, SPEED AND PUMP COVER - P.I.N. N7F203144 AND AFTER (06) - POWER TRAIN

87671890

TRANSMISSION

See Figure 06-20 - 06-35, 07-01; P.I.N. N7F203144 And After

1шт.

87671890R

REMAN-TRANSMISSION

821E TIER 3 TRANSMISSION - SENSOR, SPEED AND PUMP COVER - P.I.N. N7F203144 AND AFTER (8/06 - )

1шт.

87671890C

CORE-TRANSMISSION

Return Number

1шт.

1

8603393

COVER

Steering Pump

1шт.

2

8603395

GASKET

1шт.

3

8603396

BOLT,Hex, M8 x 18mm

M8 x 18

23шт.

4

8603397

SENSOR

Inductive Coupling; Incl. Ref. 5

3шт.

5

87453989

O-RING

3шт.

6

8603398

SENSOR

Speed, Output; Incl. Ref. 6A

1шт.

6a

8603629

O-RING

Not Illustrated

1шт.

7

8603399

SCREW,M8 x 16mm

1шт.

8

87712669

SENSOR

Incl. 8A

1шт.

8a

8603402

O-RING

1шт.
