(06-31) - TRANSMISSION - VALVE PLATES - P.I.N. N7F203144 AND AFTER

Запчасти Case 821E (06-31) - TRANSMISSION - VALVE PLATES - P.I.N. N7F203144 AND AFTER (06) - POWER TRAIN

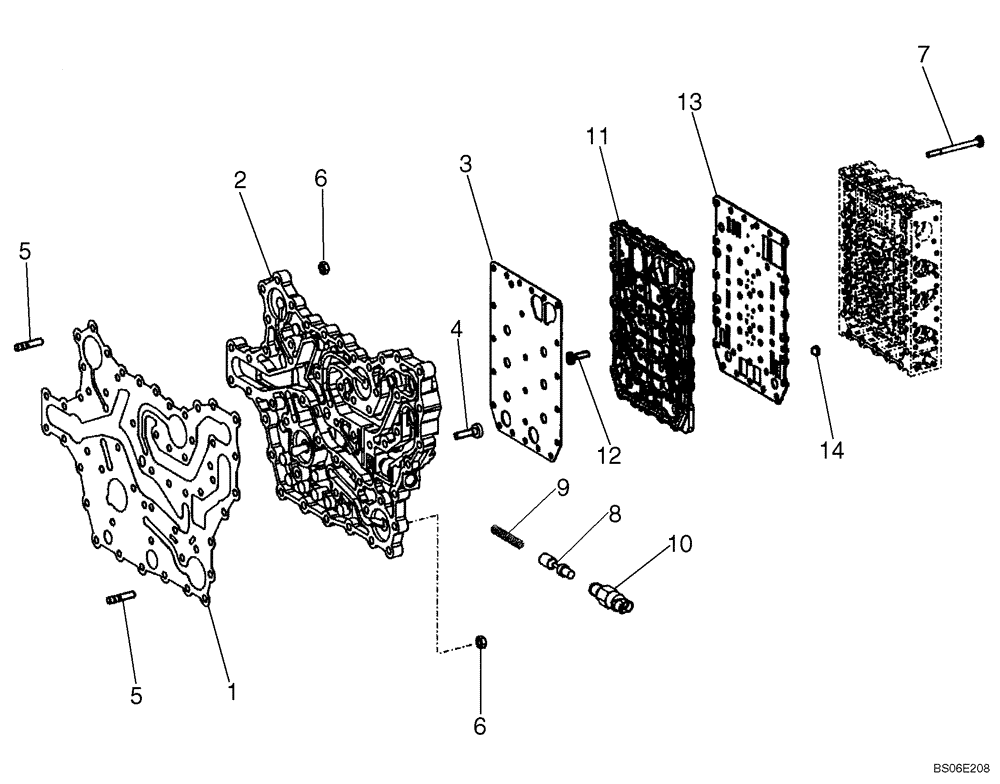

Схема запчастей Case 821E - (06-31) - TRANSMISSION - VALVE PLATES - P.I.N. N7F203144 AND AFTER (06) - POWER TRAIN
2
13
9
6
3
4
7
6
12
5
14
5
10
11
8
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87671890

TRANSMISSION

See Figure 06-20 - 06-35, 07-01; P.I.N. N7F203144 And After

1шт.

87671890R

REMAN-TRANSMISSION

821E TIER 3 TRANSMISSION - VALVE PLATES - P.I.N. N7F203144 AND AFTER (8/06 - )

1шт.

87671890C

CORE-TRANSMISSION

Return Number

1шт.

1

8603804

GASKET

1шт.

2

8603805

PLATE

1шт.

3

87712665

PLATE

1шт.

4

8603308

SCREW

M8 x 30

36шт.

5

8604714

STUD

M8 x 25

14шт.

6

8603315

NUT

M8

14шт.

7

8603182

SCREW,M6 x 76mm

M6 x 76

23шт.

8

8603533

PISTON

1шт.

9

8603534

SPRING

1шт.

10

8603537

SWITCH

Restriction

1шт.

87712671

CONTROL VALVE

Transmission Control, Incl. Refs. 11 - 14, Also Incl. Parts On Figure 06-32

1шт.

11

8603628

PLATE

Duct

1шт.

12

8603183

SCREW,M6 x 23mm, Cl 10.9

M6 x 23

18шт.

13

87712667

PLATE

1шт.

14

8603363

SCREEN

6шт.
