(06-29) - TRANSMISSION - SHAFT, OUTPUT - P.I.N. N7F203144 AND AFTER

Запчасти Case 821E (06-29) - TRANSMISSION - SHAFT, OUTPUT - P.I.N. N7F203144 AND AFTER (06) - POWER TRAIN

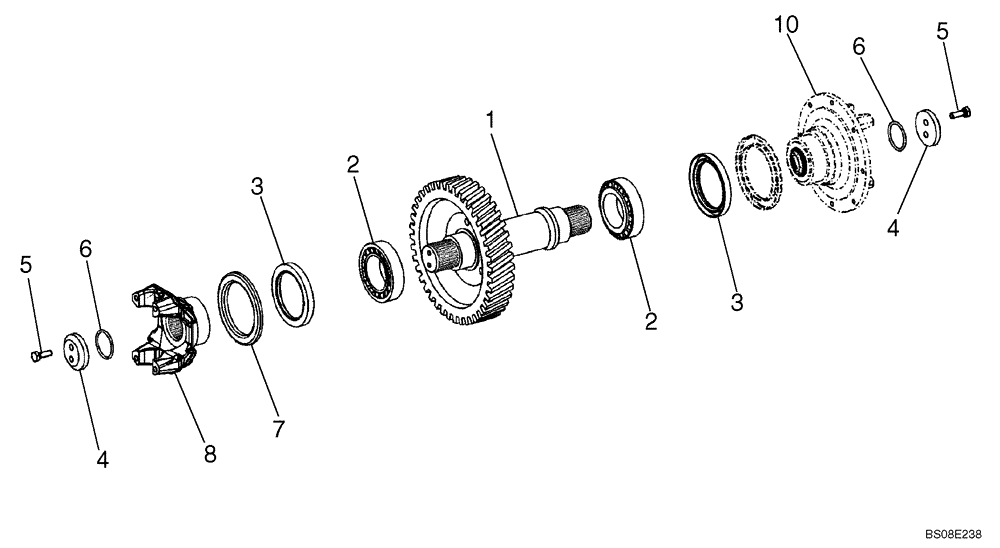

Схема запчастей Case 821E - (06-29) - TRANSMISSION - SHAFT, OUTPUT - P.I.N. N7F203144 AND AFTER (06) - POWER TRAIN
6
2
6
4
5
8
4
3
7
5
3
2
1
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87671890

TRANSMISSION

See Figure 06-20 - 06-35, 07-01; P.I.N. N7F203144 And After

1шт.

87671890R

REMAN-TRANSMISSION

821E TIER 3 TRANSMISSION - SHAFT, OUTPUT - P.I.N. N7F203144 AND AFTER (8/06 - )

1шт.

87671890C

CORE-TRANSMISSION

Return Number

1шт.

1

87757168

SHAFT

1шт.

2

8603504

ROLLER BEARING,66.67mm ID x 112.71mm OD x 30.16mm W

2шт.

3

8603211

SEAL,90mm ID x 120mm OD x 13mm Thk

2шт.

4

8604717

WASHER

2шт.

5

8603521

SCREW,Hex, M10 x 30mm

Hex, M10 x 30

4шт.

6

8603275

O-RING,4mm Thk x 48mm ID

2шт.

7

8604719

SEAL

1шт.

8

444415A1

COUPLING FLANGE

Output, Rear

1шт.

10

REF

INSTRUCTION

OUTPUT FLANGE, See Figure 07-01

1шт.
