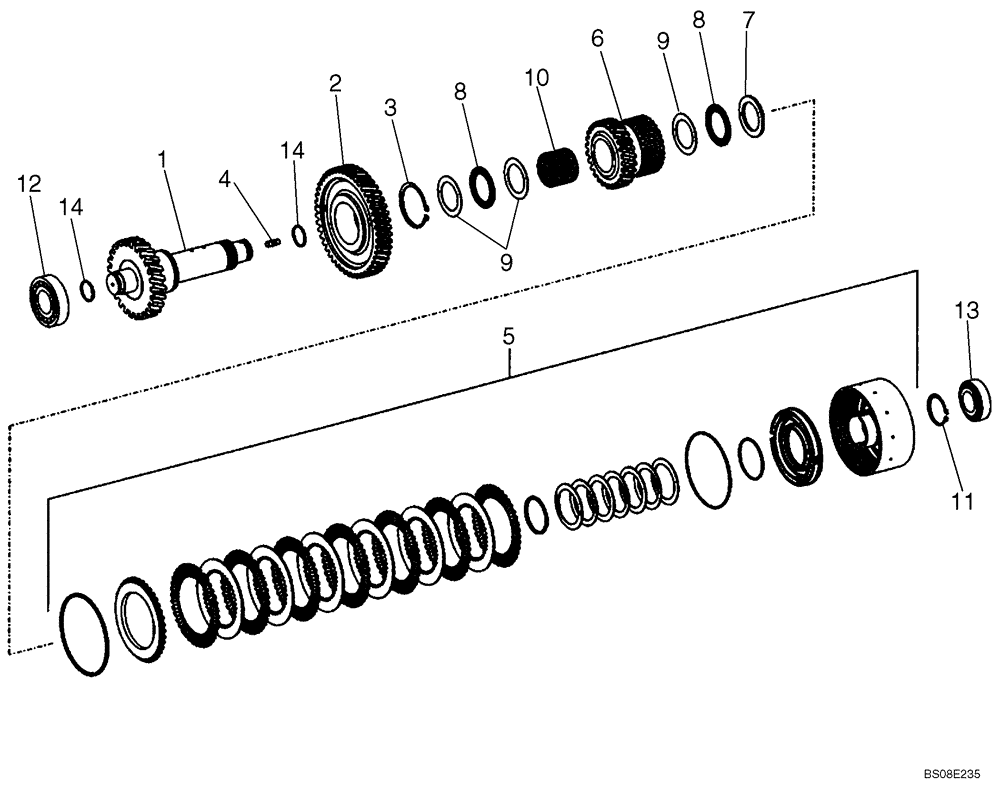

Запчасти Case 821E (06-26) - TRANSMISSION - CLUTCH ASSY, FOURTH - P.I.N. N7F203144 AND AFTER (06) - POWER TRAIN

87671890

TRANSMISSION

See Figure 06-20 - 06-35, 07-01; P.I.N. N7F203144 And After

1шт.

87671890R

REMAN-TRANSMISSION

821E TIER 3 TRANSMISSION - CLUTCH ASSY, FOURTH - P.I.N. N7F203144 AND AFTER (8/06 - )

1шт.

87671890C

CORE-TRANSMISSION

Return Number

1шт.

1

8603513

SHAFT

1шт.

2

8603515

IDLER GEAR

1шт.

3

8900125218

SEALING RING

1шт.

4

8603407

STUD

M10 x 16

1шт.

5

87757166

EXCHANGE CLUTCH ASSY

Component Parts Not Serviced Separately

1шт.

6

8604725

GEAR, IDLER

GEAR,IDLE

1шт.

7

8603430

DISC

2шт.

8

8603431

NEEDLE BEARING CAGE

2шт.

9

8603432

THRUST WASHER

3шт.

10

8603643

NEEDLE BEARING

1шт.

11

8603452

CIRCLIP

1шт.

12

8603505

ROLLER BEARING,44.45mm ID x 95.25mm OD x 37.78mm W

1шт.

13

8603435

ROLLER BEARING

1шт.

14

8603436

PISTON RING

2шт.
