(06-24) - TRANSMISSION - CLUTCH ASSY, SECOND - P.I.N. N7F203144 AND AFTER

Запчасти Case 821E (06-24) - TRANSMISSION - CLUTCH ASSY, SECOND - P.I.N. N7F203144 AND AFTER (06) - POWER TRAIN

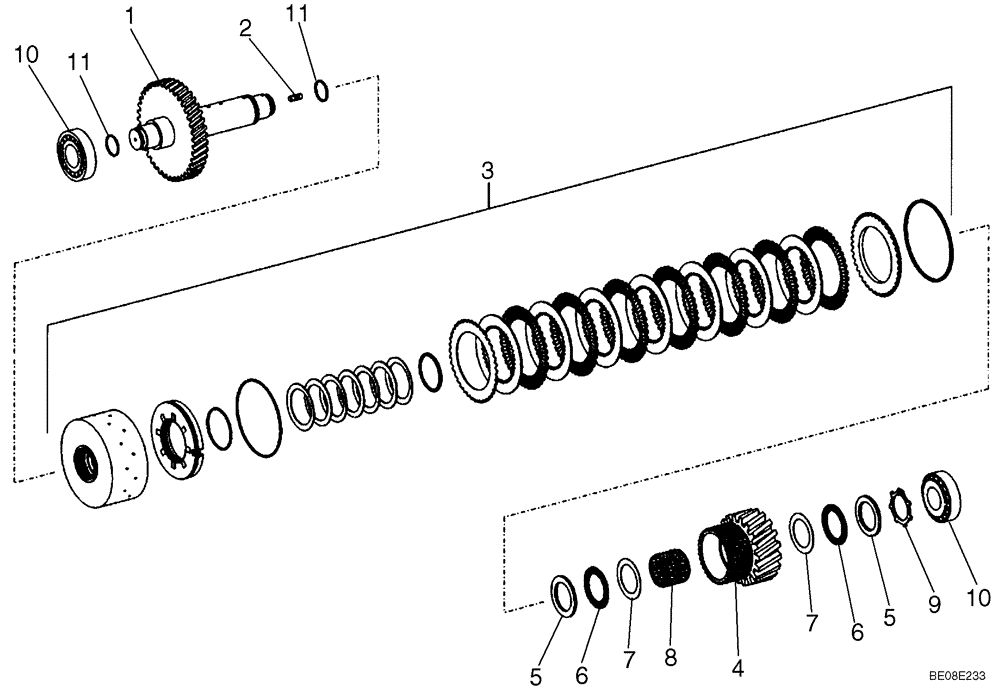

Схема запчастей Case 821E - (06-24) - TRANSMISSION - CLUTCH ASSY, SECOND - P.I.N. N7F203144 AND AFTER (06) - POWER TRAIN
8
7
10
11
5
6
4
9
1
10
11
3
7
5
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87671890

TRANSMISSION

See Figure 06-20 - 06-35, 07-01; P.I.N. N7F203144 And After

1шт.

87671890R

REMAN-TRANSMISSION

821E TIER 3 TRANSMISSION - CLUTCH ASSY, SECOND - P.I.N. N7F203144 AND AFTER (8/06 - )

1шт.

87671890C

CORE-TRANSMISSION

Return Number

1шт.

1

8603507

SHAFT

1шт.

2

8603407

STUD

M10 x 16

1шт.

3

87757164

EXCHANGE CLUTCH ASSY

Component Parts Not Serviced Separately

1шт.

4

8603508

IDLER GEAR

1шт.

5

8603430

DISC

2шт.

6

8603431

NEEDLE BEARING CAGE

2шт.

7

8603432

THRUST WASHER

2шт.

8

8603643

NEEDLE BEARING

1шт.

9

8603434

CIRCLIP

1шт.

10

8603505

ROLLER BEARING,44.45mm ID x 95.25mm OD x 37.78mm W

2шт.

11

8603436

PISTON RING

2шт.
