(06-22) - TRANSMISSION ASSY - HOUSING TUBES - P.I.N. N7F203144 AND AFTER

Запчасти Case 821E (06-22) - TRANSMISSION ASSY - HOUSING TUBES - P.I.N. N7F203144 AND AFTER (06) - POWER TRAIN

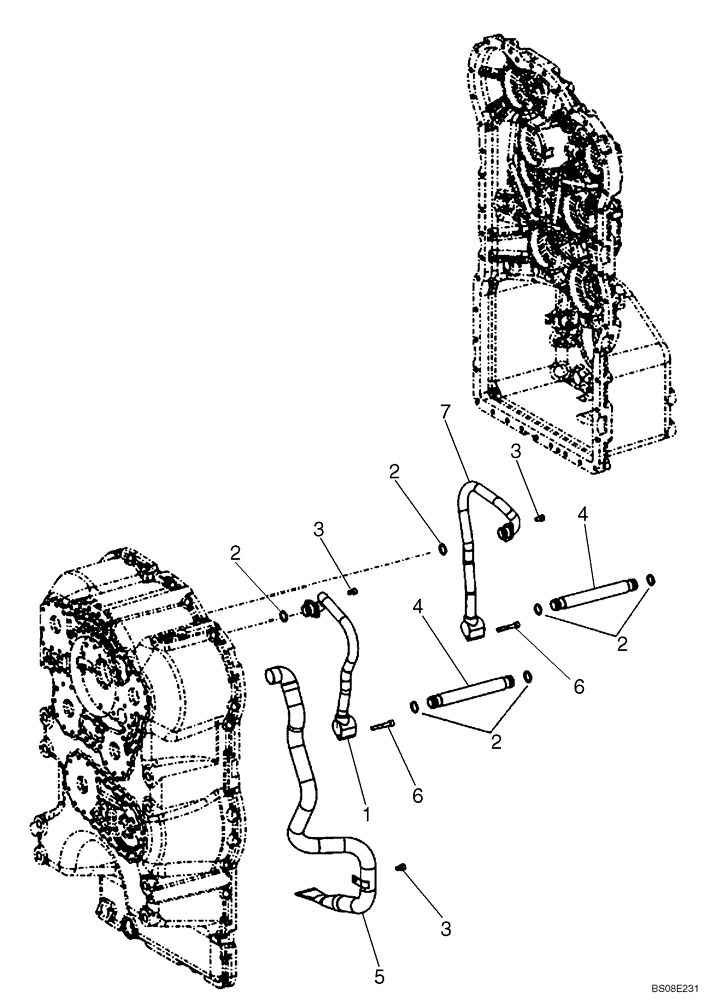

Схема запчастей Case 821E - (06-22) - TRANSMISSION ASSY - HOUSING TUBES - P.I.N. N7F203144 AND AFTER (06) - POWER TRAIN
3
2
4
4
2
2
3
5
1
2
6
6
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8604690

TUBE

Oil

1шт.

2

8603725

O-RING

22 x 3

6шт.

3

8603306

SCREW,M8 x 12mm

M8 x 12

5шт.

4

8603472

PIPE

Oil

2шт.

5

47755865

TUBE

Suction

2шт.

6

8604691

SCREW,M8 x 50mm

M8 x 50

2шт.

7

8604692

TUBE

Oil

1шт.
