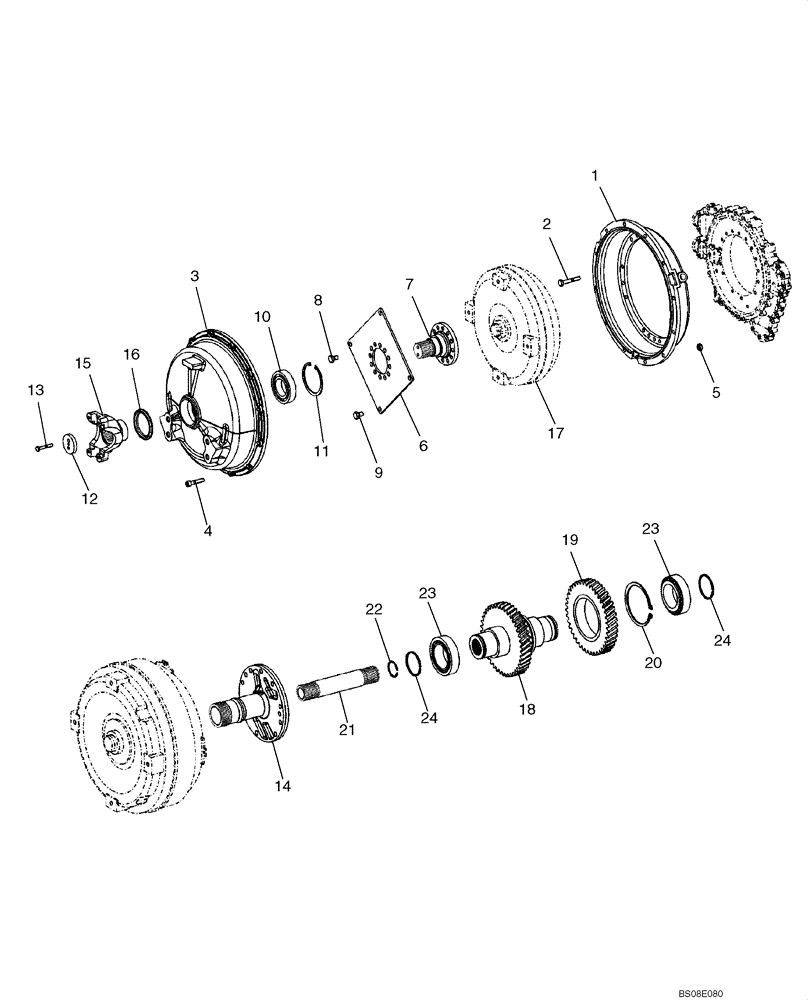

Запчасти Case 821E (06-20) - TRANSMISSION - CONVERTER, COVER AND INPUT SHAFT - P.I.N. N7F203144 AND AFTER (06) - POWER TRAIN

87671890

TRANSMISSION

See Figure 06-20 - 06-35, 07-01; P.I.N. N7F203144 And After

1шт.

87671890R

REMAN-TRANSMISSION

821E TIER 3 TRANSMISSION - CONVERTER, COVER AND INPUT SHAFT - P.I.N. N7F203144 AND AFTER (8/06 - )

1шт.

87671890C

CORE-TRANSMISSION

Return Number

1шт.

1

8603292

BELL HOUSING

Bell

1шт.

2

8603293

SCREW,Hex, M10 x 65mm

M10 x 65

18шт.

3

8604676

COVER

Converter

1шт.

4

8603466

SCREW,M10 x 50mm

M10 x 50

12шт.

5

829-1510

NUT,M10, Cl 10

12шт.

6

8604228

DIAPHRAGM

1шт.

7

87712322

SHAFT

Input

1шт.

8

8603294

SCREW,Hex, M12 x 18mm

M12 x 18

12шт.

9

8603294

SCREW,Hex, M12 x 18mm

M12 x 18

4шт.

10

8604678

BALL BEARING

1шт.

11

87410351

SNAP RING

Vee

1шт.

12

8603635

WASHER

60 x 10

1шт.

13

8603405

BOLT,Hex, M8 x 50mm

2шт.

14

8603778

SHAFT

Stator

1шт.

15

8604614

YOKE

End

1шт.

16

8604229

RING

1шт.

17

87521379

CONVERTER

Torque

1шт.

17

87521379R

REMAN-TORQUE CONVERT

ER Remanufactured

1шт.

17

87521379C

CORE-TORQUE CONVERTR

CORE-TORQUE CONVERTER Return Number

1шт.

18

8603461

SHAFT

Input

1шт.

19

8604706

GEAR

Input

1шт.

20

8603463

RETAINER

Ring

1шт.

21

8603297

SHAFT

Turbine

1шт.

22

8603298

SNAP RING

1шт.

23

8603301

ROLLER BEARING,60mm ID x 95mm OD x 27mm W

2шт.

24

8603302

PISTON RING

Piston

2шт.
