(06-19) - TRANSMISSION - FILTER, OIL AND FILLER COVER - PRIOR TO P.I.N. N7F203144

Запчасти Case 821E (06-19) - TRANSMISSION - FILTER, OIL AND FILLER COVER - PRIOR TO P.I.N. N7F203144 (06) - POWER TRAIN

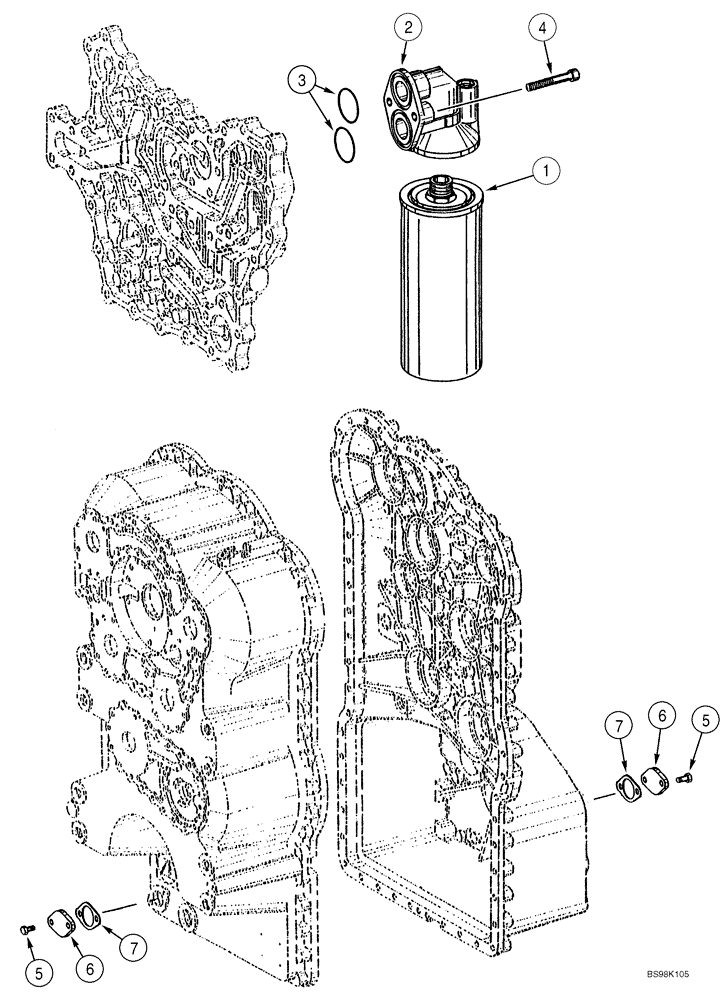

Схема запчастей Case 821E - (06-19) - TRANSMISSION - FILTER, OIL AND FILLER COVER - PRIOR TO P.I.N. N7F203144 (06) - POWER TRAIN
4
1
7
3
6
2
6
5
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87307482

TRANSMISSION

See Figure 06-02 - 06-19, 07-01; Prior To P.I.N. N7F203144

1шт.

87307482R

REMAN-TRANSMISSION

Remanufactured Transmission; 821E, Model Number 4WG210, Stock Number 4657 054 078 - ZF

1шт.

87307482C

CORE-TRANSMISSION

Return number

1шт.

1

84491498

HYDRAULIC OIL FILTER

Transmission

1шт.

2

331347A1

FILTER COVER

Transmission

1шт.

3

87712670

O-RING

Replaces 331348A1

2шт.

4

330811A1

CAPSCREW,Flg, 5/16" - 18 x 5 1/2", Gr 8

2шт.

5

331309A1

CAPSCREW,M8 x 18mm

M8 x 18

4шт.

6

S300508

COVER

2шт.

7

237302A1

GASKET

2шт.
