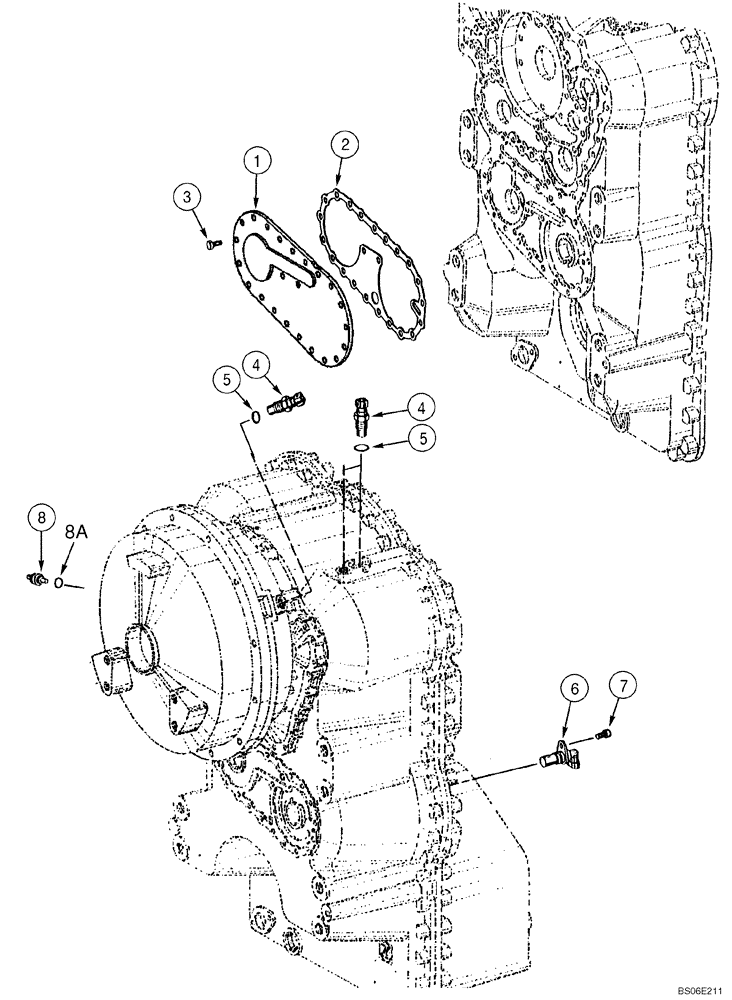

Запчасти Case 821E (06-18) - TRANSMISSION - SENSOR, SPEED AND PUMP COVER - PRIOR TO P.I.N. N7F203144 (06) - POWER TRAIN

87307482

TRANSMISSION

See Figure 06-02 - 06-19, 07-01; Prior To P.I.N. N7F203144

1шт.

87307482R

REMAN-TRANSMISSION

Remanufactured Transmission; 821E, Model Number 4WG210, Stock Number 4657 054 078 - ZF

1шт.

87307482C

CORE-TRANSMISSION

Return number

1шт.

1

331307A1

COVER

Steering Pump

1шт.

2

331308A2

GASKET

1шт.

3

331309A1

CAPSCREW,M8 x 18mm

M8 x 18

23шт.

4

331324A1

SENSOR

Inductive Coupling

3шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

6

331325A1

SENSOR

Speed

1шт.

7

331326A1

CAPSCREW,Flg, 5/16" - 18 x 2 3/4", Gr 8

1шт.

8

387101A1

TEMPERATURE SENDER

Incl. 8A

1шт.

8a

331332A1

O-RING

1шт.
