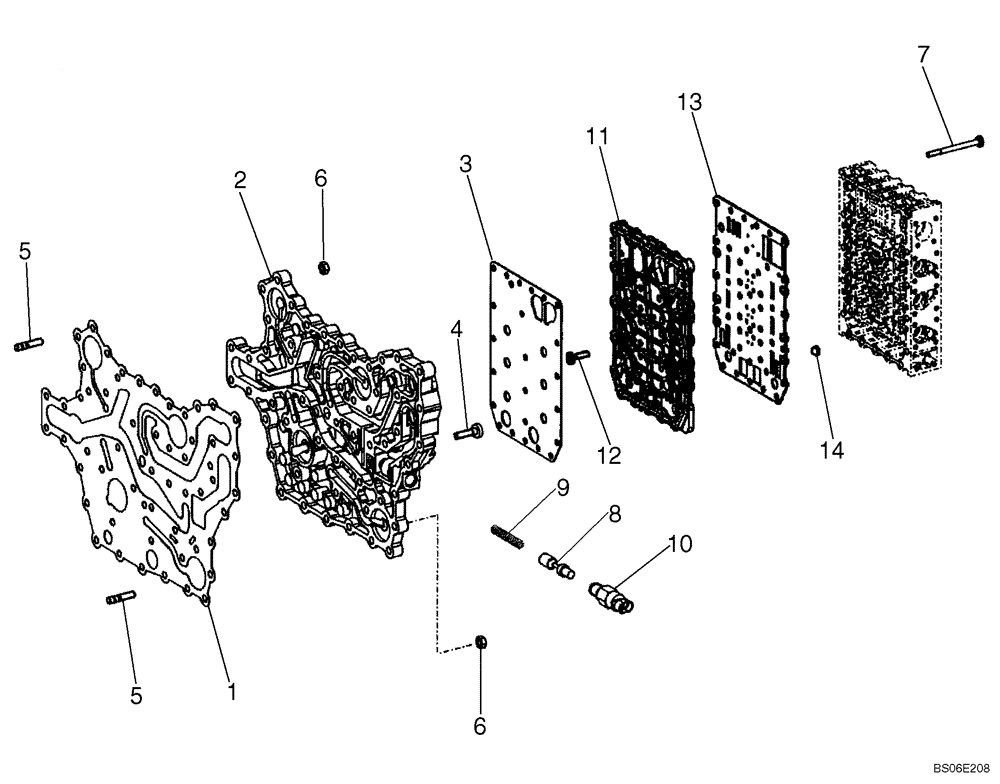

Запчасти Case 821E (06-15) - TRANSMISSION - VALVE PLATES - PRIOR TO P.I.N. N7F203144 (06) - POWER TRAIN

87307482

TRANSMISSION

See Figure 06-02 - 06-19, 07-01; Prior To P.I.N. N7F203144

1шт.

87307482R

REMAN-TRANSMISSION

Remanufactured Transmission; 821E, Model Number 4WG210, Stock Number 4657 054 078 - ZF

1шт.

87307482C

CORE-TRANSMISSION

Return number

1шт.

1

8603804

GASKET

1шт.

2

8603805

PLATE

1шт.

3

8603180

SHEET

1шт.

4

8603308

SCREW

M8 x 30

36шт.

5

8604714

STUD

M8 x 25

14шт.

6

8603315

NUT

M8

14шт.

7

8603182

SCREW,M6 x 76mm

M6 x 76

23шт.

8

8603533

PISTON

1шт.

9

8603534

SPRING

1шт.

10

8603537

SWITCH

1шт.

11

8603628

PLATE

Duct

1шт.

12

8603183

SCREW,M6 x 23mm, Cl 10.9

M6 x 23

18шт.

13

8603181

PLATE

1шт.

14

8603363

SCREEN

6шт.
