(06-13) - TRANSMISSION - SHAFT, OUTPUT - PRIOR TO P.I.N. N7F203144

Запчасти Case 821E (06-13) - TRANSMISSION - SHAFT, OUTPUT - PRIOR TO P.I.N. N7F203144 (06) - POWER TRAIN

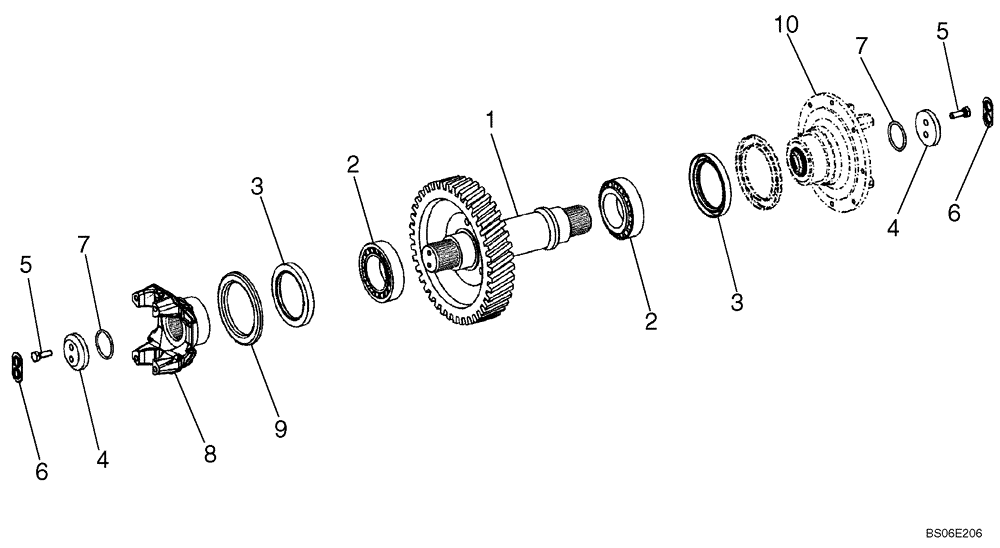

Схема запчастей Case 821E - (06-13) - TRANSMISSION - SHAFT, OUTPUT - PRIOR TO P.I.N. N7F203144 (06) - POWER TRAIN
7
2
5
8
3
4
6
3
5
7
2
9
1
4
6
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87307482

TRANSMISSION

See Figure 06-02 - 06-19, 07-01

1шт.

87307482R

REMAN-TRANSMISSION

Remanufactured Transmission; 821E, Model Number 4WG210, Stock Number 4657 054 078 - ZF

1шт.

87307482C

CORE-TRANSMISSION

Return number

1шт.

1

331963A1

SHAFT

1шт.

2

331914A1

BEARING, ROLLER

2шт.

3

8603211

SEAL,90mm ID x 120mm OD x 13mm Thk

2шт.

5

331964A1

SCREW

M10 x 30

4шт.

6

8603212

WASHER

2шт.

7

8603275

O-RING,4mm Thk x 48mm ID

1шт.

8

444415A1

COUPLING FLANGE

Output, Rear

1шт.

10

REF

INSTRUCTION

See Figure 07-01; Out Put Flange For Parking Brake Assembly

1шт.
