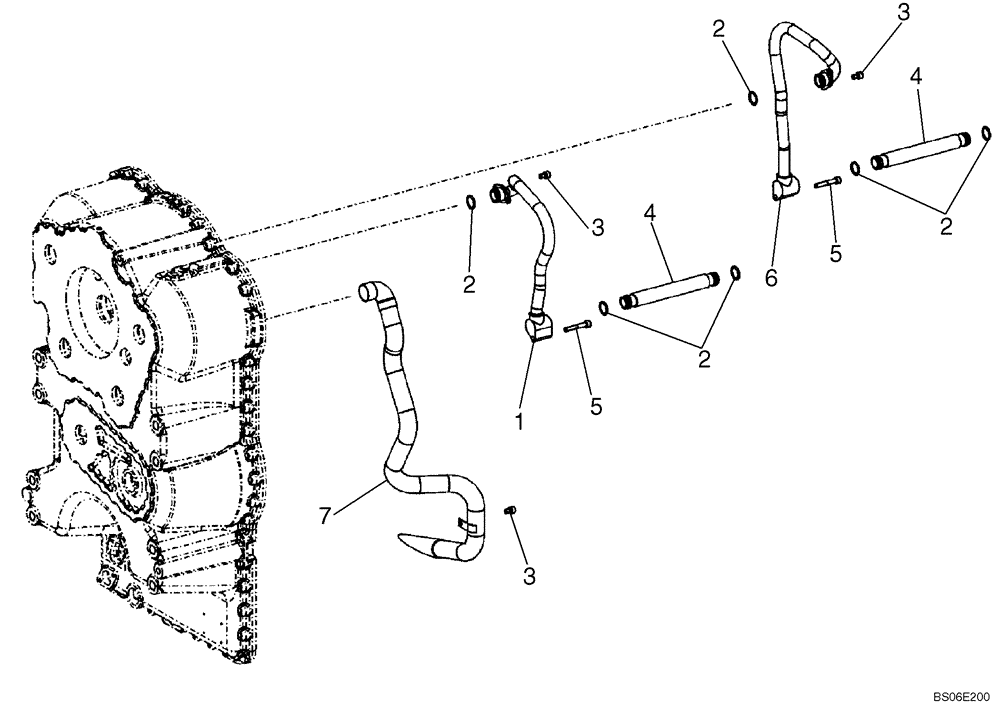

Запчасти Case 821E (06-06) - TRANSMISSION ASSY - HOUSING TUBES - PRIOR TO P.I.N. N7F203144 (06) - POWER TRAIN

87307482

TRANSMISSION

See Figure 06-02 - 06-19, 07-01; Prior To P.I.N. N7F203144

1шт.

87307482R

REMAN-TRANSMISSION

Remanufactured Transmission; 821E, Model Number 4WG210, Stock Number 4657 054 078 - ZF

1шт.

87307482C

CORE-TRANSMISSION

Return number

1шт.

1

8604690

TUBE

1шт.

2

330827A1

O-RING

22 x 3

6шт.

3

8603306

SCREW,M8 x 12mm

M8 x 12

3шт.

4

331692A1

PIPE

2шт.

5

8604691

SCREW,M8 x 50mm

M8 x 50

2шт.

6

8604692

TUBE

1шт.

7

331691A1

TUBE

1шт.
