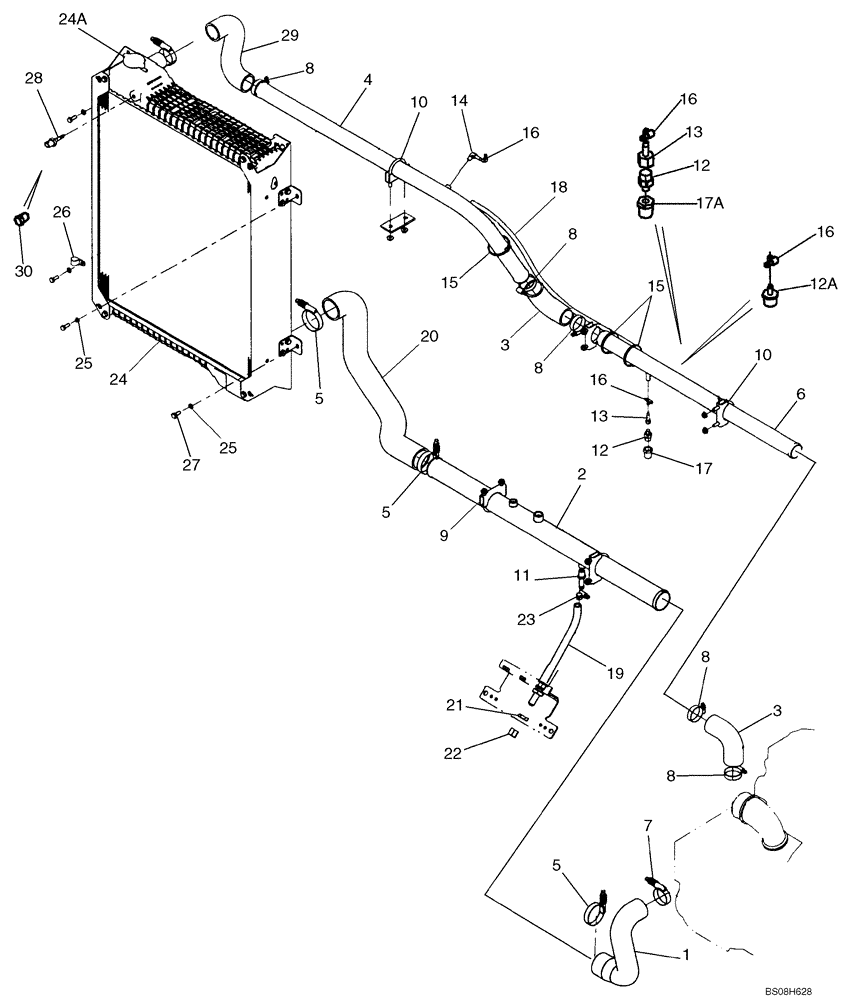

Запчасти Case 821E (02-02) - RADIATOR - MOUNTING (02) - ENGINE

1

8500084

HOSE,48.00 mm ID, 57.20 mm ID x 235.00 mm, SAE 20R4 Class D1

Bottom

1шт.

2

87325208

TUBE,57.20 mm DIA x 908 mm L

Bottom Coolant

1шт.

3

381232A1

HOSE,44.50 mm ID x 87.00 mm, SAE J20R4 Class D1

Elbow

2шт.

4

87304062

TUBE,44.50 mm OD x 849, 345 mm L

Top Coolant

1шт.

5

L115548

CLAMP,57.15mm - 79.38mm

3шт.

6

87446950

HYD TUBE,44.5 mm DIA x 767 mm L

Top Coolant Engine

1шт.

7

254026A1

HOSE CLAMP,44.45mm - 66.67mm

2шт.

8

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

If Used

5шт.

8

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

If Used

5шт.

9

393632A1

CLAMP

2шт.

10

382189A1

CLAMP

3шт.

11

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

12

J911901

VALVE, CHECK

If Used; Used With Fittings and Reducer

1шт.

12a

87635840

VALVE

CHECK, Venting; Used In Setup Without Fitting and Reducer

1шт.

13

217-191

FITTING,1/4" Hose Barb x 1/8" Female NPTF

If Used

1шт.

13a

87752081

FITTING

1/4" Hose x 1/8" Female NPTF; If Used

1шт.

14

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

15

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

16

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

17

217-1035

REDUCER FITTING,1/2" - 14 Male NPTF x 3/8" - 18 Female NPTF

If Used

1шт.

17a

87752091

BUSHING

Reducer, 1/2" Male NPTF x 3/8" Female NPTF; If Used

1шт.

18

320374A1

HOSE

Coolant Breather, 925 mm ( 36 7/16 in.), Cut To Length From 31-1182 Bulk Hose

1шт.

19

87536091

HOSE ASSY.

330mm (13 in.); Replaces 8500085 318 mm (12 1/2 in.) Hose Used On Some Models

1шт.

20

87323393

RADIATOR HOSE,57.20 mm ID, 347.00 mm

Bottom; Formed

1шт.

21

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

22

218-755

CAP,37 Degree, 3/4"-16

1шт.

23

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

1шт.

24

87310988

RADIATOR

Incl. Ref. 24A

1шт.

24a

A170241

RADIATOR CAP

1шт.

25

892-11008

LOCK WASHER,8mm ID

4шт.

26

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

27

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

28

419792A2

SENSOR

Coolant Level; If Used

1шт.

29

8500083

RADIATOR HOSE,44.50 mm ID x 165,105,79,61 mm, SAE 20R4 CLASS D1

Top

1шт.

30

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

If Used

1шт.
