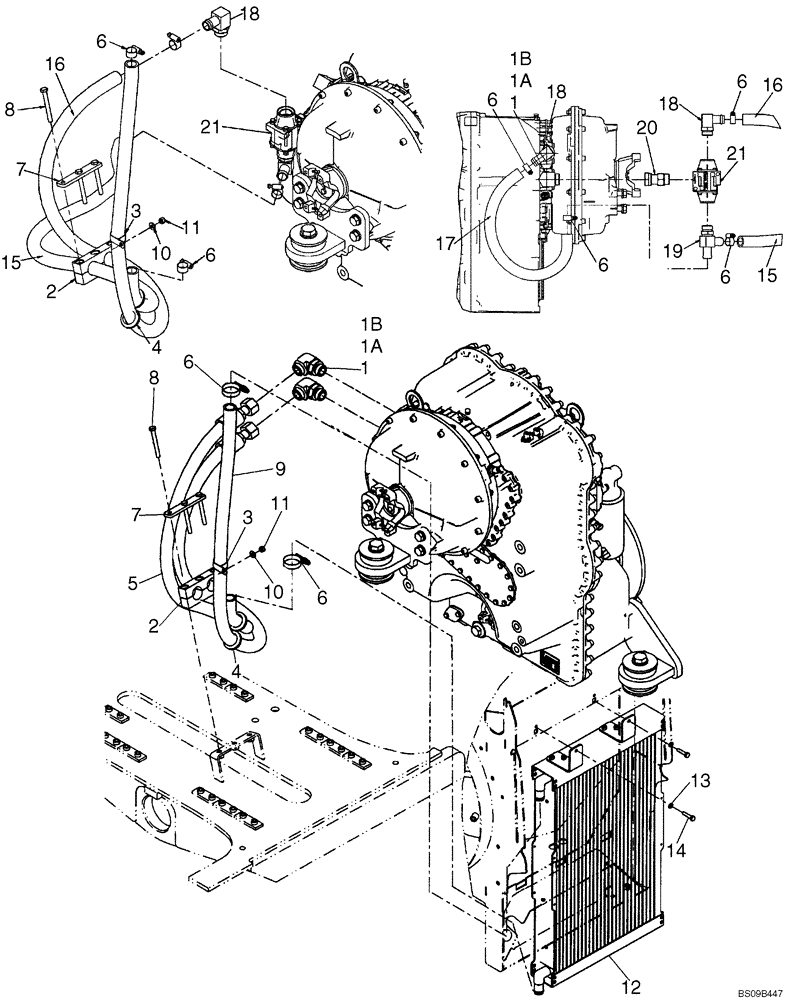

Запчасти Case 821E (06-02) - HYDRAULICS - TRANSMISSION (06) - POWER TRAIN

1

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Incl. 1A, 1B

1-2шт.

1a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss Seal

1шт.

1b

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

2

8500576

CLAMP

1шт.

3

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

Not Illustrated

1шт.

4

248-1185

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

2шт.

5

8501185

HOSE,25.4mm ID x 1375mm L

Cooler To Transmission, 1375 mm (54 1/8 in); If Used, Serial Range: -N9F206902

1шт.

6

87482165

HOSE CLAMP,1" - 1.75", Worm Gear

Replaces 353036A1 Clamp Used On Some Models

2-6шт.

7

8500583

PLATE

1шт.

8

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

3шт.

9

8501186

HOSE,25.4mm ID x 2100mm L

Transmission To Cooler, 2100 mm (82 11/16 in); If Used, Serial Range: -N9F206902

1шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

12

87311847

OIL COOLER

Transmission

1шт.

13

892-11008

LOCK WASHER,8mm ID

2шт.

14

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

2шт.

15

84195583

HOSE

HOSE, Cooler to Valve, 1350 mm (53 - 9/64 in); If Used, Start Serial: N9F206903

1шт.

16

84195582

HOSE,25.4mm ID x 2100mm L

HOSE, Valve to Cooler, 2100 mm (82 - 43/64 in); If Used, Start Serial: N9F206903

1шт.

17

84195584

HOSE

HOSE, Valve to Transmission, 650 mm (25 - 19/32); If Used, Start Serial: N9F206903

1шт.

18

87393628

ADAPTER,1" Hose Barb x 1-5/16" - 12 ORB

90 deg., Barbed; If Used, Start Serial: N9F206903

2шт.

19

235067A1

TEE

If Used, Start Serial: N9F206903

1шт.

20

87672177

HYD CONNECTOR

CONNECTOR; If Used, Start Serial: N9F206903

1шт.

21

84138750

VALVE

VALVE, Bypass; If Used, Start Serial: N9F206903

1шт.
