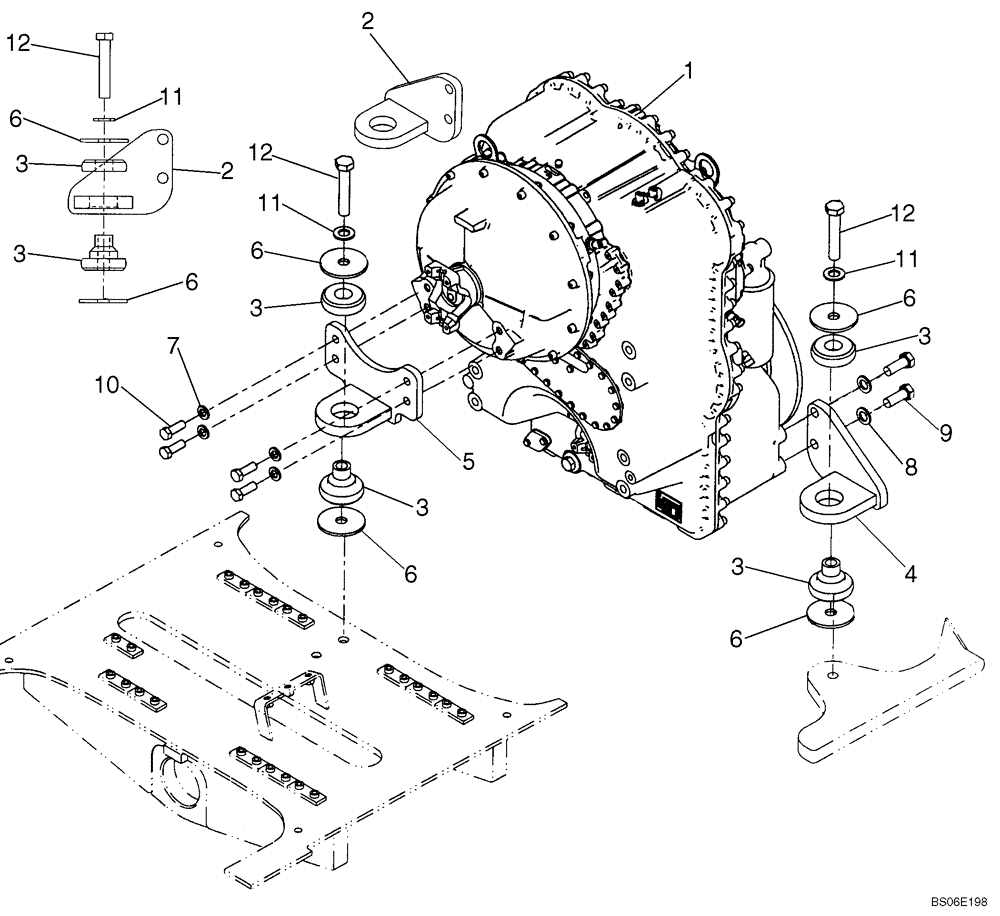

Запчасти Case 821E (06-01) - MOUNTING - TRANSMISSION (06) - POWER TRAIN

1

87307482

TRANSMISSION

Incl. Parts On Figures 06-04 - 06-19; 07-01; Prior To P.I.N. N7F203144

1шт.

1

87307482R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

1

87307482C

CORE-TRANSMISSION

Return Number

1шт.

1

87671890

TRANSMISSION

New; Incl. Parts On Figures 06-20 - 06-35, 07-01; P.I.N. N7F203144 And After

1шт.

87671890R

REMAN-TRANSMISSION

821E TIER 3 P.I.N. N7F203144 AND AFTER (8/06 - )

1шт.

87671890C

CORE-TRANSMISSION

Return Number

1шт.

1

87671890R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only

1шт.

1

87671890C

CORE-TRANSMISSION

Return Number - For N.A. only

1шт.

2

8500093

BRACKET

Left Hand

1шт.

3

361187A1

ISOLATOR

Transmission Mount

3шт.

4

8500094

BRACKET

Right Hand

1шт.

5

8500096

BRACKET

Top

1шт.

6

379611A1

WASHER

Transmission Mount

6шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

9

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

4шт.

10

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

4шт.

11

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

3шт.

12

827-22120

BOLT,Hex, M22 x 2.5 x 120mm, Cl 10.9

3шт.
