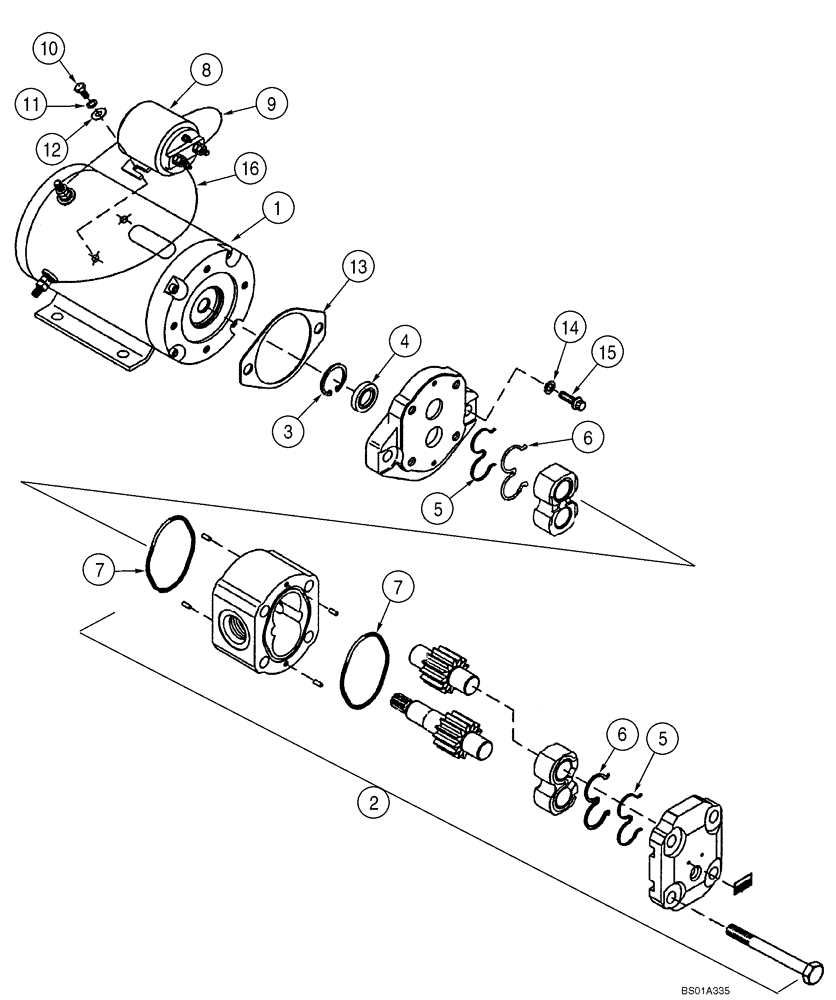

Запчасти Case 821E (05-17) - PUMP - STEERING, AUXILIARY (05) - STEERING

87571480

BRACKET

PUMP, Auxillary Steering; Replaces 380013A1; Incl. 1 - 16

1шт.

1

87581481

ELECTRIC MOTOR

DC

1шт.

2

8605158

PUMP, HYDRAULIC

1шт.

8605158R

REMAN-HYD PUMP

821E TIER 3 ( 8/06 - )

1шт.

8605158C

CORE-HYDRAULIC PUMP

Return Number

1шт.

8605163

SEAL KIT

Incl. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Backup

2шт.

6

NSS

NOT SOLD SEPARAT

Seal

2шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

8605159

KIT

Starting Switch; Incl. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

Switch

1шт.

9

NSS

NOT SOLD SEPARAT

Cable

1шт.

10

NSS

NOT SOLD SEPARAT

Screw

2шт.

11

NSS

NOT SOLD SEPARAT

Washer, Lock

2шт.

12

NSS

NOT SOLD SEPARAT

Washer

2шт.

8605160

KIT

Mounting; Incl. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

Gasket, Mounting

1шт.

14

NSS

NOT SOLD SEPARAT

Washer, Lock

2шт.

15

NSS

NOT SOLD SEPARAT

Screw

2шт.

16

8605161

WIRE

Primary

1шт.
