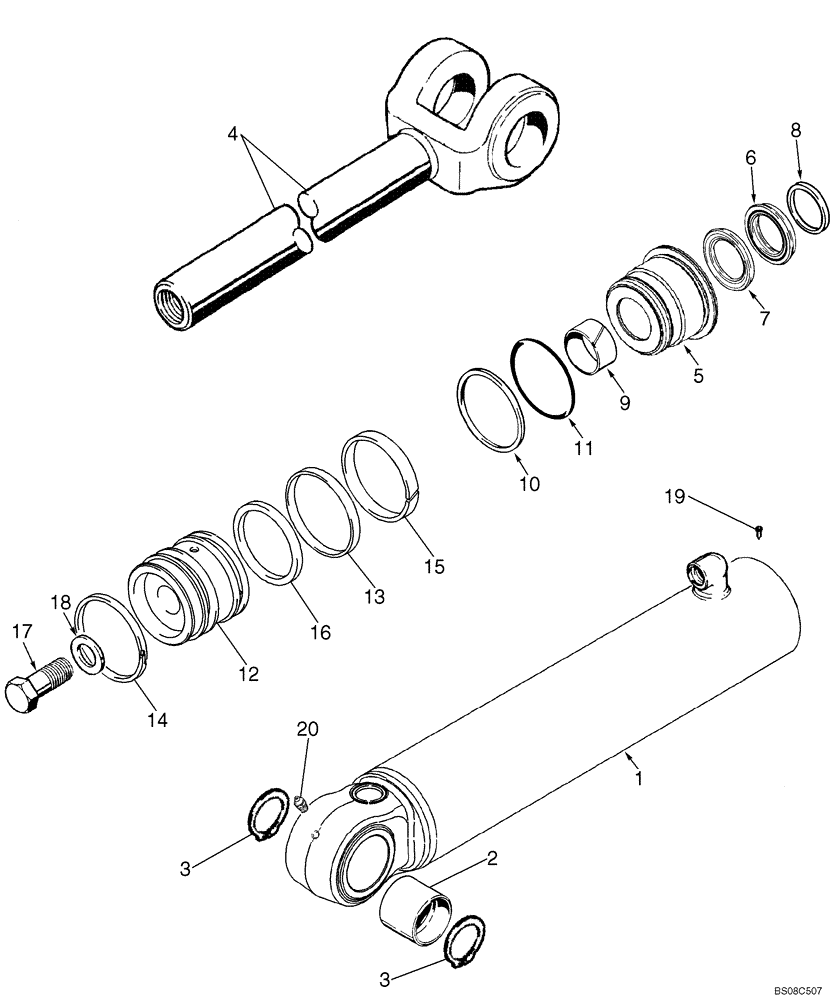

Запчасти Case 821E (05-16) - CYLINDER ASSY - STEERING (05) - STEERING

87307850

STEERING CYLINDER,44.5mm Rod, 481.9mm Stroke

82.6 ID x 481.9 strk; Incl. Refs. 1 - 20

2шт.

87307850R

REMAN-HYD CYLINDER

821E WHEEL LOADER TIER 3 NA/EU, 82.6 ID x 481.9 strk (8/06-)

2шт.

87307850C

CORE-HYD CYLINDER

Return Number

2шт.

87363451

SEAL KIT

Steering Cylinder; Incl. Refs. 6 - 11, 13 - 16

1шт.

1

87307851

TUBE,82.60 mm ID x 724.50 mm L

Incl. Refs. 2, 3

1шт.

2

442711A1

BUSHING,39.99mm ID x 62mm OD x 28mm W

Self Aligning; 40 Dia

1шт.

3

100-21244

SNAP RING,2.44", Int, #244

2шт.

4

442703A1

PISTON ROD

Rod Weldment

1шт.

1542969C1

GLAND

Assembly; Incl. Refs. 5 - 11

1шт.

5

1980321C3

GLAND

Packing

1шт.

1542875C1

SEAL KIT,44.4mm Rod

Rod and Buffer Seals; Incl Refs 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL, ROD

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL, BUFFER

1шт.

8

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

Wiper

1шт.

9

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

Rod

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

Backup

1шт.

11

238-5233

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

1шт.

87307858

PISTON ASSY

Incl. Refs 12 - 16

1шт.

12

87307859

PISTON

82.6 Bore; 44.5 Rod

1шт.

13

87398130

SEAL,79.07mm ID x 83.79mm OD x 6.96mm Thk

Piston

1шт.

14

192330A1

SEALING RING,75.3mm ID x 82.5mm OD x 4.7mm Thk

Cast Iron; 82.6 Dia

1шт.

15

S109445

RING,82.55mm OD, Ext

Wear

1шт.

16

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

Loader

1шт.

17

86982439

SPECIAL BOLT,Hex, 14, 1 x 4"

Bolt and Washer Assy; Incl. Ref. 18

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER

1шт.

19

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
